Environmental Parameters
Humidity Range Operating	5 - 90% (non-condensing)
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Expansion Slot(s)	11 (total) / 11 (free) x expansion slot
General
Capacity	Concurrent sessions : 12500000 ¦ Security policies : 80000 ¦ VPN tunnels (site-to-site) : 15000 ¦ BGP instances : 128 ¦ BGP peers : 2000 ¦ BGP routes : 1000000 ¦ OSPF instances : 400 ¦ OSPF routes : 1000000 ¦ RIP instances : 50
Dimensions (WxDxH)	17.5 in x 23.5 in x 27.8 in
Features	Firewall protection DoS attack prevention IPv6 support High Availability Intrusion Prevention System (IPS) DDos attack prevention Weighted Random Early Detection (WRED) Quality of Service (QoS) DHCP server DHCP relay Link Aggregation Control Protocol (LACP)
Performance	Firewall throughput : 150 Gbps ¦ Firewall throughput (IMIX) : 37.5 Gbps ¦ Firewall throughput (64-byte packet size) : 15 Mpps ¦ IPS throughput : 26 Gbps
Power	AC 230 V
Power Redundancy	Optional
Remote Management Protocol	Telnet HTTP HTTPS SSH CLI
Miscellaneous
Compliant Standards	NEBS level 3 EMC
Networking
Authentication Method	RADIUS
Capacity	Concurrent sessions : 12500000 ¦ Security policies : 80000 ¦ VPN tunnels (site-to-site) : 15000 ¦ BGP instances : 128 ¦ BGP peers : 2000 ¦ BGP routes : 1000000 ¦ OSPF instances : 400 ¦ OSPF routes : 1000000 ¦ RIP instances : 50
Compliant Standards	X.509
Encryption Algorithm	DES Triple DES MD5 AES IKE DH SHA-1 PKI
Features	Firewall protection DoS attack prevention IPv6 support High Availability Intrusion Prevention System (IPS) DDos attack prevention Weighted Random Early Detection (WRED) Quality of Service (QoS) DHCP server DHCP relay Link Aggregation Control Protocol (LACP)
Performance	Firewall throughput : 150 Gbps ¦ Firewall throughput (IMIX) : 37.5 Gbps ¦ Firewall throughput (64-byte packet size) : 15 Mpps ¦ IPS throughput : 26 Gbps
Remote Management Protocol	Telnet HTTP HTTPS SSH CLI
Routing Protocol	OSPF RIP-1 RIP-2 BGP OSPFv3 RIPng Bidirectional Forwarding Detection (BFD)
Power
Installed Qty	2
Max Supported Qty	4
Power Device	Power supply - plug-in module
Power Redundancy	Optional
Voltage Required	AC 230 V

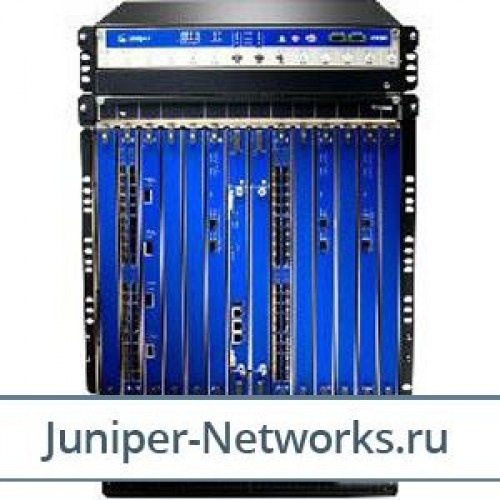

Juniper Networks Base systems with High capacity power supply & fan trays The SRX 5800 services gateway is the market-leading security solution supporting more than 120 Gbps firewall, 30 Gbps IDP and 350,000 connections per second

Juniper Networks Base systems with High capacity power supply & fan trays The SRX 5800 services gateway is the market-leading security solution supporting more than 120 Gbps firewall, 30 Gbps IDP and 350,000 connections per second. Equipped with the full range of security features, SRX 5800 is ideally suited for securing large enterprise centers and co-located data centers. It can also be deployed to secure service provider infrastructures as well as services. The massive scalability and flexibility of the services gateway makes it ideal for continuously consolidating and growing data center requirements, as well as the rapid service deployment requirements by service and managed service providers.
