Environmental Parameters
Humidity Range Operating	5 - 90%
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Expansion Slot(s)	11 (total) / 11 (free) x expansion slot
General
Capacity	VPN tunnel interfaces : 5000
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Device Type	Security appliance
Dimensions (WxDxH)	17.5 in x 23.5 in x 27.8 in
Enclosure Type	External
Features	DHCP support DDos attack prevention Weighted Random Early Detection (WRED) Quality of Service (QoS) IPSec passthrough
OS Required	JUNOS
Power	AC 120/230 V
Remote Management Protocol	Telnet HTTP HTTPS SSH
Networking
Authentication Method	RADIUS
Capacity	VPN tunnel interfaces : 5000
Connectivity Technology	Wired
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Data Transfer Rate	1 Gbps
Encryption Algorithm	DES MD5 AES IKE DH SHA-1 PKI
Features	DHCP support DDos attack prevention Weighted Random Early Detection (WRED) Quality of Service (QoS) IPSec passthrough
Form Factor	External
Remote Management Protocol	Telnet HTTP HTTPS SSH
Routing Protocol	OSPF RIP-1 RIP-2 BGP
Power
Power Device	Power supply - plug-in module
Voltage Required	AC 120/230 V
Software / System Requirements
OS Required	JUNOS

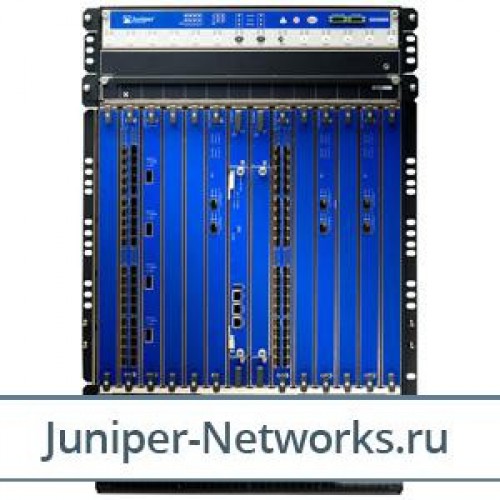

Juniper Networks SRX5800 chassis, includes RE, 2xSCB, 3 AC power supplies

Juniper Networks SRX5800 chassis, includes RE, 2xSCB, 3 AC power supplies. Country specific power cords purchased separately, see below. The SRX 5800 services gateway is the market-leading security solution supporting more than 120 Gbps firewall, 30 Gbps IDP and 350,000 connections per second. Equipped with the full range of security features, SRX 5800 is ideally suited for securing large enterprise centers and co-located data centers. It can also be deployed to secure service provider infrastructures as well as services. The massive scalability and flexibility of the services gateway makes it ideal for continuously consolidating and growing data center requirements, as well as the rapid service deployment requirements by service and managed service providers.
