Environmental Parameters
Humidity Range Operating	5 - 90%
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Expansion Slot(s)	5 (total) / 3 (free) x expansion slot
General
Capacity	VPN tunnel interfaces : 5000 ¦ Concurrent sessions : 8000000 ¦ Security policies : 80000 ¦ Security zones : 256 ¦ Virtual interfaces (VLANs) : 4096 ¦ OSPF routes : 1000000
Device Type	Security appliance
Dimensions (WxDxH)	17.5 in x 23.8 in x 14 in
Enclosure Type	External
Features	DHCP support NAT support DoS attack prevention DDos attack prevention Weighted Random Early Detection (WRED) Quality of Service (QoS) IPSec passthrough DHCP server
Network / Transport Protocol	DHCP
OS Required	JUNOS
Performance	Firewall throughput (IMIX) : 20 Gbps ¦ 3DES and AES performance : 15 Gbps ¦ IPS throughput : 15 Gbps
Power	DC -40 -60 V
Remote Management Protocol	SNMP 2 Telnet HTTP HTTPS SSH
Networking
Authentication Method	RADIUS
Capacity	VPN tunnel interfaces : 5000 ¦ Concurrent sessions : 8000000 ¦ Security policies : 80000 ¦ Security zones : 256 ¦ Virtual interfaces (VLANs) : 4096 ¦ OSPF routes : 1000000
Connectivity Technology	Wired
Encryption Algorithm	DES Triple DES MD5 AES IKE SHA-1 PKI
Features	DHCP support NAT support DoS attack prevention DDos attack prevention Weighted Random Early Detection (WRED) Quality of Service (QoS) IPSec passthrough DHCP server
Form Factor	External
Network / Transport Protocol	DHCP
Performance	Firewall throughput (IMIX) : 20 Gbps ¦ 3DES and AES performance : 15 Gbps ¦ IPS throughput : 15 Gbps
Remote Management Protocol	SNMP 2 Telnet HTTP HTTPS SSH
Routing Protocol	OSPF RIP-1 RIP-2 BGP ECMP
Power
Installed Qty	2
Max Supported Qty	4
Power Device	Power supply - plug-in module
Voltage Required	DC -40 -60 V
Software / System Requirements
OS Required	JUNOS

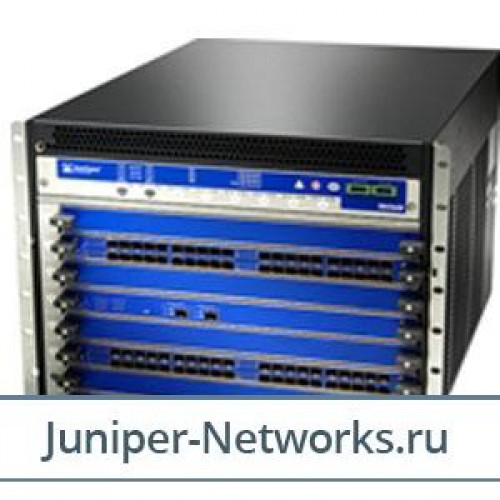

Juniper Networks SRX5600 chassis, includes RE, SCB, 2 DC power supplies Based on the dynamic services architecture, the SRX Series provides unrivaled scalability

Juniper Networks SRX5600 chassis, includes RE, SCB, 2 DC power supplies Based on the dynamic services architecture, the SRX Series provides unrivaled scalability. The SPCs are designed to support a wide range of services enabling future support of capabilities without the need for service-specific hardware. Using SPCs on all services ensures that there are no idle resources based on specific services being used - maximizing the utilization of equipped hardware.The scalability and flexibility of the SRX5000 line of services gateways are supported by equally robust interfaces. The SRX Series Services Gateways employ a modular approach to interfaces where the gateway can be equipped with a flexible number of input/output cards (IOCs). With the IOCs sharing the same interface slot as the SPCs, the gateway can be configured to support the ideal balance of processing and I/O. Hence, each deployment of the SRX Series can be tailored to specific network requirements.The SRX5600 is ideally suited for securing enterprise data centers as well as aggregation of various security solutions. The capability to support unique security policies per zones and its ability to scale with the growth of the network infrastructure makes the SRX5600 an ideal deployment.
