SRX550 Juniper - SRX Серия
| AES256+SHA-1 / 3DES+SHA-1 VPN performance | |
| 1.0 Gbps | Да |
| AppSecure Services | |
| Junos OS 12.1 | Да |
| CX111 3G/4G modem support | |
| Да | Да |
| Dimensions and Power | |
| Average power consumption | 122 W |
| Dimensions (W x H x D) | 17.5 x 3.5 x 18.2 in (44.4 x 8.8 x 46.2 cm) |
| Maximum power draw | 247 W redundant or 494 W non-redundant |
| Power supply (AC) | 100–240 VAC Single 250 W or Dual 250 W |
| Weight | Chassis |
| Firewall performance (max) | |
| 5.5 Gbps | Да |
| High-availability support | |
| Да | Да |
| IPS performance (NSS 4.2.1) | |
| 800 Mbps | Да |
| Junos OS version tested | |
| Junos OS 12.1 | Да |
| Maximum available slots for IOCs | |
| N/A | Да |
| Maximum concurrent sessions | |
| 375 K | Да |
| Maximum security policies | |
| 7256 | Да |
| Maximum users supported | |
| Unrestricted | Да |
| New sessions/second (sustained, TCP, 3-way) | |
| 27000 | Да |
| WAN / LAN fixed ports | |
| 4 x SFP | Да |
| 6 x 10/100/1000BASE-T | Да |
| WAN / LAN PIMs | |
| 1 x DS3/E3 | Да |
| 16 x 1 10/100/1000 copper (PoE optional) | Да |
| 2 x 10 GbE SFP+ / 10 GbE Base-T Copper | Да |
| 24 x 1 10/100/1000 copper w / 4SFP ports (PoE optional) | Да |
| ADSL2 Annex A | Да |
| ADSL2 Annex B | Да |
| DOCSIS 3.0 Cable Modem | Да |
| Dual Port T1/E1 | Да |
| G.SHDSL | Да |
| GbE SFP | Да |
| Quad Port T1/E1 | Да |
| Sync Serial | Да |
| T1/E1 | Да |
| VDSL2 Annex A | Да |

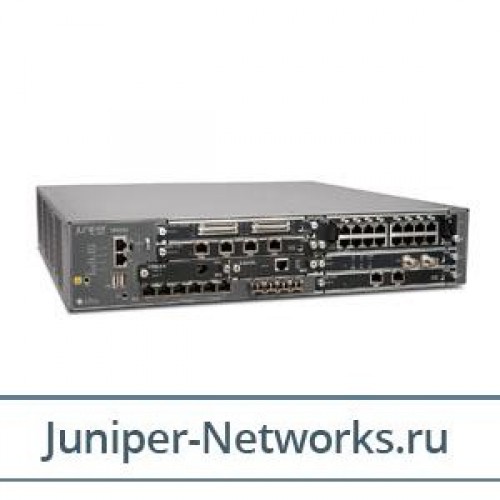

The SRX550 Services Gateway delivers a single, consolidated, advanced branch networking and security platform with ten built-in GbE ports, two mini-PIM slots, and six GPIM or XPIM slots for unmatched modularity and flexibility
The SRX550 Services Gateway delivers a single, consolidated, advanced branch networking and security platform with ten built-in GbE ports, two mini-PIM slots, and six GPIM or XPIM slots for unmatched modularity and flexibility.Supported WAN interfaces include T1/E1, serial, ADSL2/2+, VDSL, G.SHDSL, and DS3/E3. The SRX550 can also support up to 52 Ethernet ports including SFP; 40 PoE or PoE+ ports, and 10GbE.Security and UTM services include best class antivirus, antispam, enhanced Web filtering, intrusion prevention system, AppSecure, unified access control, and content filtering.The SRX550 is ideally suited for medium to large branch locations that require full secure connectivity over private and public WANs.Разработано «Джусто Веб» © 2014
