Environmental Parameters
Humidity Range Operating	5 - 90%
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Expansion Slot(s)	4 (total) / 4 (free) x expansion slot ¦ 4 (total) / 4 (free) x SFP (mini-GBIC)
Interfaces	8 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
General
Capacity	VPN tunnel interfaces : 5000 ¦ OSPF routes : 1000000 ¦ Concurrent sessions : 1000000 ¦ Security policies : 40000
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Device Type	Security appliance
Dimensions (WxDxH)	17.5 in x 25.5 in x 5.2 in
Enclosure Type	External
Features	DHCP support DoS attack prevention DDos attack prevention Weighted Random Early Detection (WRED) Quality of Service (QoS) IPSec passthrough
Performance	IPS throughput : 6 Gbps ¦ Firewall throughput (IMIX) : 8 Gbps ¦ Firewall throughput : 20 Gbps
Power	DC -40 -60 V
Remote Management Protocol	SNMP 2 SNMP 3 HTTP HTTPS SSH
Networking
Authentication Method	RADIUS LDAP Active Directory
Capacity	VPN tunnel interfaces : 5000 ¦ OSPF routes : 1000000 ¦ Concurrent sessions : 1000000 ¦ Security policies : 40000
Connectivity Technology	Wired
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Data Transfer Rate	1 Gbps
Encryption Algorithm	DES Triple DES MD5 AES IKE SHA-1 PKI
Features	DHCP support DoS attack prevention DDos attack prevention Weighted Random Early Detection (WRED) Quality of Service (QoS) IPSec passthrough
Form Factor	External
Performance	IPS throughput : 6 Gbps ¦ Firewall throughput (IMIX) : 8 Gbps ¦ Firewall throughput : 20 Gbps
Remote Management Protocol	SNMP 2 SNMP 3 HTTP HTTPS SSH
Routing Protocol	OSPF RIP-1 RIP-2 BGP ECMP
Power
Installed Qty	2
Power Device	Power supply - plug-in module
Voltage Required	DC -40 -60 V

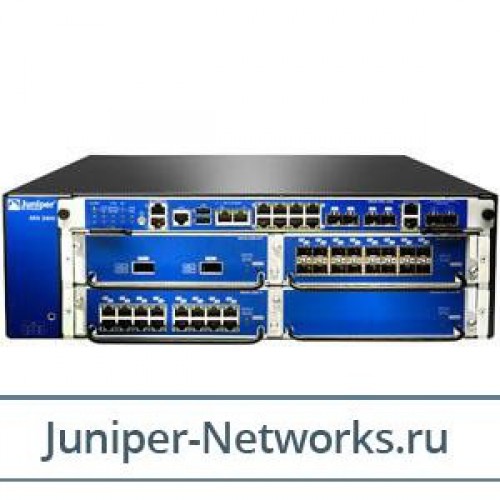

Juniper Networks SRX 3400 Chassis, Midplane, Fan, RE, SFB-12GE, DC PEM - no SPC - no NPC The SRX3400 Services Gateway uses the same SPCs, IOCs and NPCs, it can support up to 20 Gbps firewall, 6 Gbps firewall and IPS, or 6 Gbps of IPsec VPN, along with up to 175,000 connections per second

Juniper Networks SRX 3400 Chassis, Midplane, Fan, RE, SFB-12GE, DC PEM - no SPC - no NPC The SRX3400 Services Gateway uses the same SPCs, IOCs and NPCs, it can support up to 20 Gbps firewall, 6 Gbps firewall and IPS, or 6 Gbps of IPsec VPN, along with up to 175,000 connections per second. The SRX3400 is ideally suited for securing and segmenting enterprise data centers/network infrastructure as well as aggregation of various security solutions. The capability to support unique security policies per zones and its ability to scale with the growth of the network makes the SRX3400 an ideal deployment for small to midsized server farms or hosting sites.
