Environmental Parameters
Humidity Range Operating	10 - 90%
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Expansion Slot(s)	4 (total) / 4 (free) x expansion slot
Interfaces	16 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x management - console - RJ-45 ¦ 2 x USB - 4 pin USB Type A
General
Capacity	IPSec VPN tunnels : 1000 ¦ Concurrent sessions : 128000 ¦ Security policies : 4096 ¦ Concurrent VPN tunnels : 1000 ¦ VPN tunnel interfaces : 128 ¦ Security zones : 32 ¦ Virtual interfaces (VLANs) : 512 ¦ OSPF routes : 64000
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Device Type	Security appliance
Dimensions (WxDxH)	17.5 in x 15.2 in x 1.7 in
Enclosure Type	External - 1U
Features	Firewall protection DHCP support power over Ethernet (PoE) DoS attack prevention content filtering Intrusion Prevention System (IPS) IP address filtering DDos attack prevention Quality of Service (QoS) MPLS VPN Jumbo Frames support
Flash Memory Installed (Max)	1 GB flash
Network / Transport Protocol	IPSec PPPoE SMTP FTP DHCP POP3 IMAP
Performance	Firewall throughput (large packets) : 1.5 Gbps ¦ Firewall throughput (IMIX) : 500 Mbps ¦ IPS throughput : 250 Mbps ¦ Antivirus throughput : 85 Mbps ¦ Connection rate : 9000 connections per second ¦ 3DES+SHA1 VPN performance (large packets) : 250 Mbps
Ports Qty	16
Power	AC 120/230 V ( 50/60 Hz )
RAM Installed ( Max )	1 GB
Miscellaneous
Compliant Standards	FCC Class B certified CSA CTR 21 VCCI Class B ITE EN55022 Class B DOC CS-03 UL 60950-1 EN 60950-1 ICES Class B
MTBF	14 years
Networking
Authentication Method	SecurID RADIUS LDAP XAUTH (RADIUS LDAP Active Directory)
Capacity	IPSec VPN tunnels : 1000 ¦ Concurrent sessions : 128000 ¦ Security policies : 4096 ¦ Concurrent VPN tunnels : 1000 ¦ VPN tunnel interfaces : 128 ¦ Security zones : 32 ¦ Virtual interfaces (VLANs) : 512 ¦ OSPF routes : 64000
Compliant Standards	IEEE 802.1Q IEEE 802.3af IEEE 802.3ad (LACP) IEEE 802.1x IEEE 802.3at
Connectivity Technology	Wired
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Encryption Algorithm	DES Triple DES MD5 IKE DH SHA-1 PKI 256-bit AES
Features	Firewall protection DHCP support power over Ethernet (PoE) DoS attack prevention content filtering Intrusion Prevention System (IPS) IP address filtering DDos attack prevention Quality of Service (QoS) MPLS VPN Jumbo Frames support
Form Factor	External
Network / Transport Protocol	IPSec PPPoE SMTP FTP DHCP POP3 IMAP
Performance	Firewall throughput (large packets) : 1.5 Gbps ¦ Firewall throughput (IMIX) : 500 Mbps ¦ IPS throughput : 250 Mbps ¦ Antivirus throughput : 85 Mbps ¦ Connection rate : 9000 connections per second ¦ 3DES+SHA1 VPN performance (large packets) : 250 Mbps
Ports Qty	16
Routing Protocol	OSPF RIP-1 RIP-2 BGP IGMPv2 IGMP PIM-SM IGMPv3 PIM-SSM ECMP
Switching Protocol	Frame Relay Ethernet
Power
Installed Qty	1
Power Consumption Operational	65 Watt
Power Device	Power supply - internal
Power Provided	150 Watt
Voltage Required	AC 120/230 V ( 50/60 Hz )
Processor / Memory / Storage
Flash Memory Installed (Max)	1 GB flash
Hard Drive	None.
RAM Installed ( Max )	1 GB
Software / System Requirements
OS Provided	JUNOS

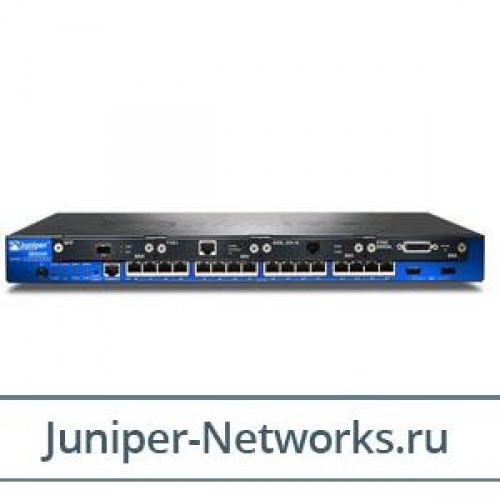

Juniper Networks SRX services gateway 240 with 16 x GE ports, 4xmini-PIM slots, and high memory (1GB RAM, 1GB FLASH)

Juniper Networks SRX services gateway 240 with 16 x GE ports, 4xmini-PIM slots, and high memory (1GB RAM, 1GB FLASH). Integrated power supply with power cord. 19 inch Rack mount kit included. The Juniper SRX Series is well known as one of the premier secure router brand lines on the market today, and the brand new Juniper SRX240 Firewall is no exception to this rule. As an ideal router for branch distribution enterprise locations, it combines a highly competent feature set with cost efficiency and style to create a secure solution for small and mid sized businesses that are on a budget. One of the most important aspects of the SRX240H is its Unified Threat Management security feature, which protects your business network from viruses, Trojans, spam and online threats. The device also supports a 250 Mbps IPS, a 250 Mbps IPSec VPN and a 1.5 Gbps firewall -- enough resources to incorporate secure routing protection of a small business network without causing latency problems within the network. Other impressive statistics include a 1.8 Gbps maximum firewall performance, 128,000 maximum concurrent sessions, up to 8500 new sessions per second and 4096 maximum security policies available. The Juniper SRX 240 Firewall also supports an unlimited amount of users with WAN/LAN fixed ports for Gigabit Ethernet capabilities as well as Ethernet and Fast Ethernet (16 full built in 10/100/1000 ports). It also has a stylish form that is easy to fit into any technology stack. Whether you are colocating or keeping your routers in house, you will have very little trouble with the physical incorporation of your SRX240H into your larger network system.
