AES256+SHA-1 / 3DES+SHA-1 VPN performance
100 Mbps	Да
AppSecure Services
Junos OS 11.4	Да
CX111 3G/4G modem support
Да	Да
Dimensions and Power
Average power consumption	28 W (LM)
Dimensions (W x H x D)	14.31 x 1.73 x 7.11 in (36.3 x 4.4 x 18.1 cm)
Maximum power draw	120 W
Power supply (AC) 100–240 VAC 60 W (Non-PoE) / 200 W PoE	Да
Weight	Chassis
Firewall performance (max)
950 Mbps	Да
High-availability support
Да	Да
IPS performance (NSS 4.2.1)
100 Mbps	Да
Junos OS version tested
Junos OS 10.4.r1	Да
Maximum available slots for IOCs
N/A	Да
Maximum concurrent sessions
96K (1 GB DRAM)	Да
Maximum security policies
2048	Да
Maximum users supported
Unrestricted	Да
New sessions/second (sustained, TCP, 3-way)
2800	Да
WAN / LAN fixed ports
8 x 10/100/1000BASE-T	Да
WAN / LAN PIMs
ADSL2 Annex A	Да
ADSL2 Annex B	Да
DOCSIS 3.0 Cable Modem	Да
G.SHDSL	Да
GbE SFP	Да
Sync Serial	Да
T1/E1	Да
VDSL2	Да

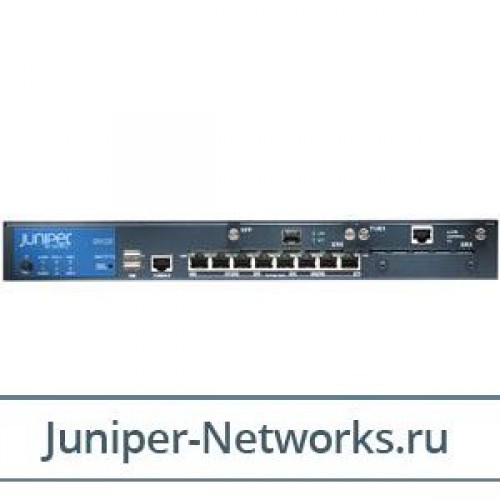

The SRX220 Services Gateway is a secure router that supports up to 950 Mbps firewall, 100 Mbps IPSec VPN, and 100 Mbps IPS

The SRX220 Services Gateway is a secure router that supports up to 950 Mbps firewall, 100 Mbps IPSec VPN, and 100 Mbps IPS. Additional security features include Unified Threat Management (UTM), which consists of: IPS, antispam, antivirus, and Web filtering. The SRX220 Services Gateway is ideally suited for securing small to medium distributed enterprise locations.
