Environmental Parameters
Humidity Range Operating	10 - 90%
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Expansion Slot(s)	1 (total) / 1 (free) x expansion slot ¦ 1 (total) / 1 (free) x ExpressCard
Interfaces	2 x network / power - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x network / power - Ethernet 10Base-T/100Base-TX - RJ-45 ¦ 4 x network - Ethernet 10Base-T/100Base-TX - RJ-45 ¦ 1 x management - console - RJ-45 ¦ 2 x USB - 4 pin USB Type A
General
Capacity	IPSec VPN tunnels : 256 ¦ Concurrent sessions : 64000 ¦ Security policies : 512 ¦ OSPF routes : 16000 ¦ Concurrent VPN tunnels : 256 ¦ VPN tunnel interfaces : 64 ¦ Security zones : 12
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Device Type	Security appliance
Dimensions (WxDxH)	11.1 in x 7.1 in x 1.7 in
Enclosure Type	External - 1U
Features	Firewall protection DHCP support power over Ethernet (PoE) DoS attack prevention content filtering Intrusion Prevention System (IPS) IP address filtering DDos attack prevention Quality of Service (QoS) MPLS VPN Jumbo Frames support
Flash Memory Installed (Max)	1 GB flash
Network / Transport Protocol	IPSec PPPoE SMTP FTP DHCP POP3 IMAP
Performance	Firewall throughput (large packets) : 750 Mbps ¦ Firewall throughput (IMIX) : 250 Mbps ¦ IPS throughput : 80 Mbps ¦ Antivirus throughput : 30 Mbps ¦ Connection rate : 2000 connections per second
Power	AC 120/230 V ( 50/60 Hz )
Power Over Ethernet (PoE) Supported	PoE
RAM Installed ( Max )	1 GB
Miscellaneous
Compliant Standards	FCC Class B certified CSA CTR 21 VCCI Class B ITE EN55022 Class B DOC CS-03 UL 60950-1 EN 60950-1 ICES Class B
MTBF	14 years
Networking
Authentication Method	SecurID RADIUS LDAP XAUTH (RADIUS LDAP Active Directory)
Capacity	IPSec VPN tunnels : 256 ¦ Concurrent sessions : 64000 ¦ Security policies : 512 ¦ OSPF routes : 16000 ¦ Concurrent VPN tunnels : 256 ¦ VPN tunnel interfaces : 64 ¦ Security zones : 12
Compliant Standards	IEEE 802.1Q IEEE 802.3af IEEE 802.3ad (LACP) IEEE 802.1x
Connectivity Technology	Wired
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Encryption Algorithm	DES Triple DES MD5 IKE DH SHA-1 PKI 256-bit AES
Features	Firewall protection DHCP support power over Ethernet (PoE) DoS attack prevention content filtering Intrusion Prevention System (IPS) IP address filtering DDos attack prevention Quality of Service (QoS) MPLS VPN Jumbo Frames support
Form Factor	External
Network / Transport Protocol	IPSec PPPoE SMTP FTP DHCP POP3 IMAP
Performance	Firewall throughput (large packets) : 750 Mbps ¦ Firewall throughput (IMIX) : 250 Mbps ¦ IPS throughput : 80 Mbps ¦ Antivirus throughput : 30 Mbps ¦ Connection rate : 2000 connections per second
Routing Protocol	OSPF RIP-1 RIP-2 BGP IGMPv2 IGMP PIM-SM IGMPv3 PIM-SSM ECMP
Switching Protocol	Frame Relay Ethernet
Power
Power Consumption Operational	84 Watt
Power Device	Power supply - internal
Power Over Ethernet (PoE) Supported	PoE
Power Provided	150 Watt
Voltage Required	AC 120/230 V ( 50/60 Hz )
Processor / Memory / Storage
Flash Memory Installed (Max)	1 GB flash
Hard Drive	None.
RAM Installed ( Max )	1 GB

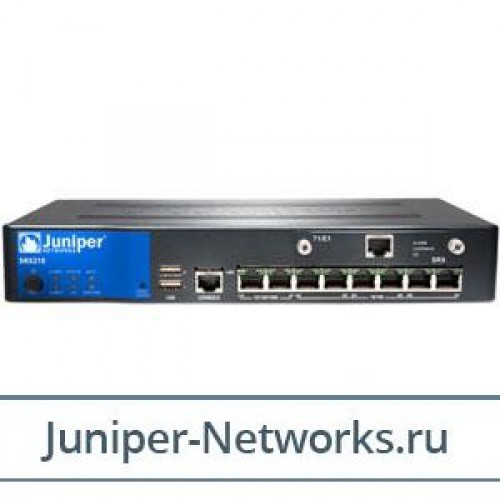

Juniper Networks SRX services gateway 210 "Enhanced" with faster CPU, 2xGE + 6xFE ports, 1xmini-PIM slot, 1GB RAM, 1GB FLASH, 4 ports of POE (50 W across 4 ports) The SRX Series Services Gateways are high-performance security, routing and network solutions for enterprise and service providers

Juniper Networks SRX services gateway 210 "Enhanced" with faster CPU, 2xGE + 6xFE ports, 1xmini-PIM slot, 1GB RAM, 1GB FLASH, 4 ports of POE (50 W across 4 ports) The SRX Series Services Gateways are high-performance security, routing and network solutions for enterprise and service providers. SRX gateways pack high port-density, advanced security, and flexible connectivity, into a single, easily managed platform that supports fast, secure, and highly-available, data center and branch operations.SRX Series Service Gateways are based on Junos, Juniper's proven operating system which delivers security and advanced protection services, the foundation of the world's largest networks. Junos also supports rich routing capabilities, and Junos' unique architecture provides reliable service operations and manageability, even under the highest loads.
