Environmental Parameters
Humidity Range Operating	10 - 90%
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Expansion Slot(s)	1 (total) / 1 (free) x expansion slot ¦ 1 (total) / 1 (free) x ExpressCard
Interfaces	2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 6 x network - Ethernet 10Base-T/100Base-TX - RJ-45 ¦ 2 x USB - 4 pin USB Type A
General
Capacity	IPSec VPN tunnels : 256 ¦ Concurrent sessions : 64000 ¦ Security policies : 512 ¦ OSPF routes : 16000 ¦ Concurrent VPN tunnels : 256 ¦ VPN tunnel interfaces : 64 ¦ Security zones : 12
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Device Type	Security appliance
Dimensions (WxDxH)	11.1 in x 7.1 in x 1.7 in
Enclosure Type	External - 1U
Features	Firewall protection DHCP support DoS attack prevention content filtering Intrusion Prevention System (IPS) IP address filtering DDos attack prevention Quality of Service (QoS) MPLS VPN Jumbo Frames support
Flash Memory Installed (Max)	1 GB flash
Network / Transport Protocol	IPSec PPPoE SMTP FTP DHCP POP3 IMAP
Performance	Firewall throughput (large packets) : 750 Mbps ¦ Firewall throughput (IMIX) : 250 Mbps ¦ IPS throughput : 80 Mbps ¦ Antivirus throughput : 30 Mbps ¦ Connection rate : 2000 connections per second
Power	AC 120/230 V ( 50/60 Hz )
RAM Installed ( Max )	1 GB
Miscellaneous
Compliant Standards	FCC Class B certified CSA CTR 21 VCCI Class B ITE EN55022 Class B DOC CS-03 UL 60950-1 EN 60950-1 ICES Class B
MTBF	14 years
Networking
Authentication Method	SecurID RADIUS LDAP XAUTH (RADIUS LDAP Active Directory)
Capacity	IPSec VPN tunnels : 256 ¦ Concurrent sessions : 64000 ¦ Security policies : 512 ¦ OSPF routes : 16000 ¦ Concurrent VPN tunnels : 256 ¦ VPN tunnel interfaces : 64 ¦ Security zones : 12
Compliant Standards	IEEE 802.1Q IEEE 802.3af IEEE 802.3ad (LACP) IEEE 802.1x
Connectivity Technology	Wired
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Encryption Algorithm	DES Triple DES MD5 IKE DH SHA-1 PKI 256-bit AES
Features	Firewall protection DHCP support DoS attack prevention content filtering Intrusion Prevention System (IPS) IP address filtering DDos attack prevention Quality of Service (QoS) MPLS VPN Jumbo Frames support
Form Factor	External
Network / Transport Protocol	IPSec PPPoE SMTP FTP DHCP POP3 IMAP
Performance	Firewall throughput (large packets) : 750 Mbps ¦ Firewall throughput (IMIX) : 250 Mbps ¦ IPS throughput : 80 Mbps ¦ Antivirus throughput : 30 Mbps ¦ Connection rate : 2000 connections per second
Routing Protocol	OSPF RIP-1 RIP-2 BGP IGMPv2 IGMP PIM-SM IGMPv3 PIM-SSM ECMP
Switching Protocol	Frame Relay Ethernet
Power
Installed Qty	1
Power Consumption Operational	28 Watt
Power Device	Power supply - internal
Power Provided	60 Watt
Voltage Required	AC 120/230 V ( 50/60 Hz )
Processor / Memory / Storage
Flash Memory Installed (Max)	1 GB flash
Hard Drive	None.
RAM Installed ( Max )	1 GB

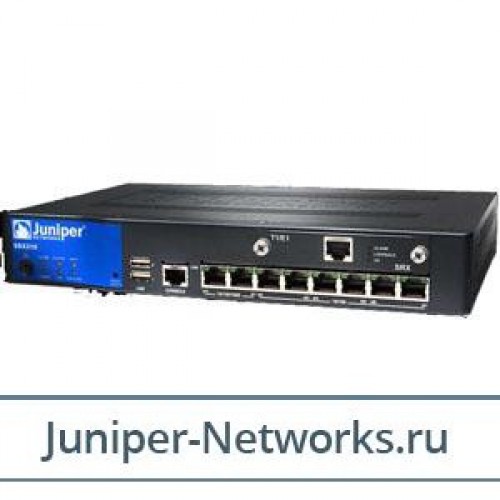

Juniper Networks SRX services gateway 210 Enhanced with faster CPU, 2xGE + 6xFE ports, 1xmini-PIM slot, and 1GB RAM, 1GB FLASH The Juniper SRX210HE Firewall continues to serve as one of the more cost-effective yet feature-intensive models within the brand line

Juniper Networks SRX services gateway 210 Enhanced with faster CPU, 2xGE + 6xFE ports, 1xmini-PIM slot, and 1GB RAM, 1GB FLASH The Juniper SRX210HE Firewall continues to serve as one of the more cost-effective yet feature-intensive models within the brand line. With high memory capabilities and plenty of slots for different forms of connectivity, it provides a consolidated functionality that is ideal for business offices that depend on high efficiency performance. This Juniper SRX series firewall provides, among other capabilities, the ability to switch, route and secure many hundreds of users at once. There are also many applications capabilities that incorporate themselves easily into the framework. The SRX210HE is a connection lover's dream with two GE ports, six FE ports, a mini PIM slot, one Express Card slot and one full gig of both RAM and Flash memory. It is also fully compatible with gigabit ethernet with two 10/100/1000 built in ethernet ports. The unit also has support for T1/E1 lines, serial and ADSL/2/2+ as well as SFP. To increase the amount of system speed even further, the Juniper SRX210 Firewall also has a content security accelerator built into its hardware. Finally, it contains full UTM capabilities with protection from spam, viruses, Trojans and malicious content from the Internet. Please note, the packinging also comes with a power cord and an external power supply for your convenience.
