Environmental Parameters
Humidity Range Operating	10 - 90%
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Expansion Slot(s)	1 (total) / 1 (free) x expansion slot ¦ 1 (total) / 1 (free) x ExpressCard
Interfaces	2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 6 x network - Ethernet 10Base-T/100Base-TX - RJ-45 ¦ 2 x USB - 4 pin USB Type A
General
Capacity	IPSec VPN tunnels : 256 ¦ Concurrent sessions : 32000 ¦ Security policies : 512 ¦ OSPF routes : 8000 ¦ Concurrent VPN tunnels : 256 ¦ VPN tunnel interfaces : 64 ¦ Security zones : 12
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Device Type	Security appliance
Dimensions (WxDxH)	11.1 in x 7.1 in x 1.7 in
Enclosure Type	External - 1U
Features	Firewall protection DHCP support DoS attack prevention content filtering Intrusion Prevention System (IPS) IP address filtering DDos attack prevention Quality of Service (QoS) MPLS VPN Jumbo Frames support
Flash Memory Installed (Max)	1 GB flash
Network / Transport Protocol	IPSec PPPoE SMTP FTP DHCP POP3 IMAP
Performance	Firewall throughput (large packets) : 750 Mbps ¦ Firewall throughput (IMIX) : 250 Mbps ¦ IPS throughput : 80 Mbps ¦ Antivirus throughput : 30 Mbps ¦ Connection rate : 2000 connections per second
Power	AC 120/230 V ( 50/60 Hz )
RAM Installed ( Max )	512 MB
Miscellaneous
Compliant Standards	FCC Class B certified CSA CTR 21 VCCI Class B ITE EN55022 Class B DOC CS-03 UL 60950-1 EN 60950-1 ICES Class B
MTBF	14 years
Networking
Authentication Method	SecurID RADIUS LDAP XAUTH (RADIUS LDAP Active Directory)
Capacity	IPSec VPN tunnels : 256 ¦ Concurrent sessions : 32000 ¦ Security policies : 512 ¦ OSPF routes : 8000 ¦ Concurrent VPN tunnels : 256 ¦ VPN tunnel interfaces : 64 ¦ Security zones : 12
Compliant Standards	IEEE 802.1Q IEEE 802.3af IEEE 802.3ad (LACP) IEEE 802.1x
Connectivity Technology	Wired
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Encryption Algorithm	DES Triple DES MD5 IKE DH SHA-1 PKI 256-bit AES
Features	Firewall protection DHCP support DoS attack prevention content filtering Intrusion Prevention System (IPS) IP address filtering DDos attack prevention Quality of Service (QoS) MPLS VPN Jumbo Frames support
Form Factor	External
Network / Transport Protocol	IPSec PPPoE SMTP FTP DHCP POP3 IMAP
Performance	Firewall throughput (large packets) : 750 Mbps ¦ Firewall throughput (IMIX) : 250 Mbps ¦ IPS throughput : 80 Mbps ¦ Antivirus throughput : 30 Mbps ¦ Connection rate : 2000 connections per second
Routing Protocol	OSPF RIP-1 RIP-2 BGP IGMPv2 IGMP PIM-SM IGMPv3 PIM-SSM ECMP
Switching Protocol	Frame Relay Ethernet
Power
Installed Qty	1
Power Consumption Operational	28 Watt
Power Device	Power supply - internal
Power Provided	60 Watt
Voltage Required	AC 120/230 V ( 50/60 Hz )
Processor / Memory / Storage
Flash Memory Installed (Max)	1 GB flash
Hard Drive	None.
RAM Installed ( Max )	512 MB
Software / System Requirements
OS Provided	JUNOS

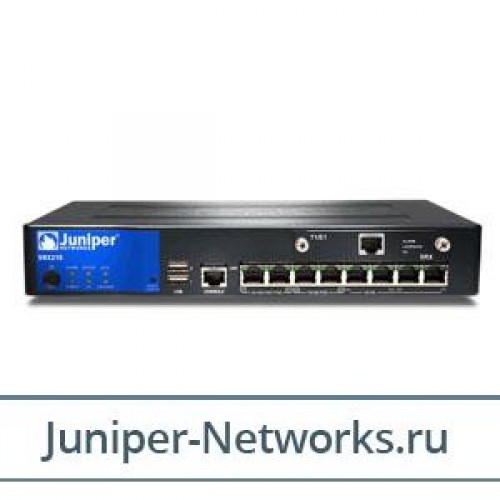

Juniper Networks SRX services gateway 210 with 2xGE + 6xFE ports, 1xMini-PIM slot, 1xExpressCard slot, and base memory (512MB RAM, 1GB FLASH)

Juniper Networks SRX services gateway 210 with 2xGE + 6xFE ports, 1xMini-PIM slot, 1xExpressCard slot, and base memory (512MB RAM, 1GB FLASH). External power supply and cord included. The Juniper Networks SRX Series Services Gateways for the branch joins Juniper Networks SRX Series for the high end, EX Series Ethernet Switches, M Series Multiservice Edge Routers, MX Series Ethernet Services Routers, and T Series Core Routers to provide a single Juniper Networks JUNOS Software-based portfolio of unprecedented scale. With JUNOS, enterprises and service providers can lower deployment and operational costs across their entire distributed workforce.SRX Series Services Gateways for the branch provide perimeter security, content security, access control, and network-wide threat visibility and control. Best-in-class firewall and VPN technologies secure the perimeter with minimal configuration and consistent performance. By using zones and policies, even new network administrators can configure and deploy an SRX Series for the branch quickly and securely. Policy-based VPNs support more complex security architectures that require dynamic addressing and split tunneling. For content security, SRX Series for the branch offers a complete suite of Unified Threat Management (UTM) services consisting of: intrusion prevention system (IPS), antivirus, anti-spam, Web filtering and data loss prevention via content filtering to protect your network from the latest content borne threats. The branch SRX Series integrates with other Juniper security products to deliver enterprise-wide unified access control and adaptive threat management. These capabilities give security professionals powerful tools in the fight against cybercrime and data loss.SRX Series for the branch brings high-performance and proven deployment and capabilities to enterprises that need to build a worldwide network of thousands of sites. The wide variety of options allows configuration of performance, functionality, and price scaled to support from a handful to thousands of users. Ethernet, serial, T1/E1, xDSL, Metro Ethernet, and third generation (3G) cellular wireless are all available options for WAN or Internet connectivity to securely link your sites. Multiple form factors allow you to make cost-effective choices for mission-critical deployments. Managing the network is easy using the proven JUNOS command-line interface (CLI) and scripting capabilities, or a simple to use Web-based GUI.
