Compatibility Information
Designed For	Juniper Networks SRX210 Services Gateway SRX210 Services Gateway Enhanced SRX210 Services Gateway High Memory Enhanced SRX220 Services Gateway SRX240 Services Gateway
Environmental Parameters
Humidity Range Operating	5 - 90%
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Compatible Slots	1 x expansion slot
Interfaces	1 x modem - SHDSL - RJ-45
General
Designed For	Juniper Networks SRX210 Services Gateway SRX210 Services Gateway Enhanced SRX210 Services Gateway High Memory Enhanced SRX220 Services Gateway SRX240 Services Gateway
Device Type	DSL modem
Digital Signaling Protocol	SHDSL
Dimensions (WxDxH)	3.7 in x 5.7 in x 0.8 in
Enclosure Type	Plug-in module
Max Transfer Rate	22.784 Mbps
Protocols & Specifications	ITU G.991.2 (G.shdsl)
System Requirements	JUNOS
Miscellaneous
Compliant Standards	ETSI EN55024 IC CS-03 EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 FCC Part 68 CAN/CSA-E60065-00 EN 61000-4-5 EN 61000-4-11 UL 60950-1 IEC 60950-1 EN 60950-1 FCC Part 15 A CSA C22.2 No. 60950-1
Modem
Connectivity Technology	Wired
Digital Signaling Protocol	SHDSL
Max Transfer Rate	22.784 Mbps
Protocols & Specifications	ITU G.991.2 (G.shdsl)
Networking
Network / Transport Protocol	PPPoE PPPoA
Software / System Requirements
OS Required	JUNOS

Juniper Networks 8-wire (4-pair) G

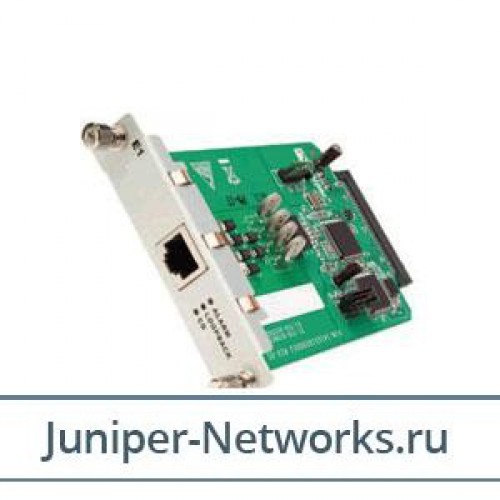

Juniper Networks 8-wire (4-pair) G.SHDSL Mini-PIM for SRX Juniper Networks G.SHDSL Mini-PIM provides the physical connection to G.SHDSL network media types, receiving incoming packets from the network and transmitting outgoing packets to the network. The G.SHDSL Mini-PIM forwards packets for processing while performing framing and line speed signaling. The 8-wire RJ-45 port on the PIM can be split into 4 RJ11 telephone ports using the supplied adapter.
