Environmental Parameters
Humidity Range Operating	5 - 90%
Max Operating Temperature	113 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Compatible Slots	1 x expansion slot
Interfaces	1 x modem - VDSL2 - RJ-11
General
Device Type	DSL modem
Digital Signaling Protocol	ADSL ADSL2 ADSL2+ VDSL2
Dimensions (WxDxH)	3.7 in x 5.7 in x 0.8 in
Enclosure Type	Plug-in module
Max Transfer Rate	100 Mbps
Networking	MLPPP
Protocols & Specifications	ITU G.992.1 (G.DMT) Annex A ITU G.992.3 Annex A ITU G.992.5 Annex M ITU G.992.3 Annex M ITU G.992.5 Annex A
Miscellaneous
Compliant Standards	ETSI CISPR 22 Class A EN 61000-3-2 EN 61000-3-3 EN55024 EN55022 Class A IC CS-03 EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 FCC Part 68 EN 61000-4-5 EN 61000-4-11 IEC 60950-1 EN 60950-1 CSA C22.2 No. 60950-1-03 UL 60950-1 Third Edition FCC Part 15 A
Modem
Connectivity Technology	Wired
Digital Signaling Protocol	ADSL ADSL2 ADSL2+ VDSL2
Features	Auto configuration
Max Transfer Rate	100 Mbps
Protocols & Specifications	ITU G.992.1 (G.DMT) Annex A ITU G.992.3 Annex A ITU G.992.5 Annex M ITU G.992.3 Annex M ITU G.992.5 Annex A
Transmission Mode	Two-way
Networking
Compliant Standards	IEEE 802.3ah
Data Link Protocol	MLPPP
Features	Dying Gasp support
Network / Transport Protocol	OAM F4 OAM F5

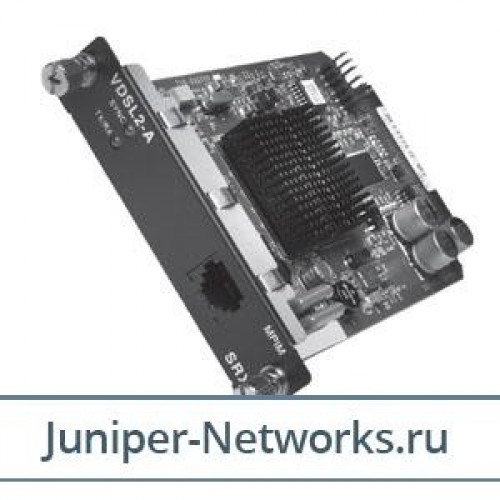

Juniper Networks 1-Port VDSL2 Mini-PIM supporting Annex A, with fallback to ADSL2/ADSL2+ The Juniper Networks single-port VDSL2 Mini-Physical Interface Module (Mini- PIM) for the Juniper Networks SRX200 line provides VDSL2/ADSL2+/ADSL2 WAN connectivity ideal for remote branch deployments requiring highspeed WAN access for asymmetrical transmission rates up to 100 Mbps

Juniper Networks 1-Port VDSL2 Mini-PIM supporting Annex A, with fallback to ADSL2/ADSL2+ The Juniper Networks single-port VDSL2 Mini-Physical Interface Module (Mini- PIM) for the Juniper Networks SRX200 line provides VDSL2/ADSL2+/ADSL2 WAN connectivity ideal for remote branch deployments requiring highspeed WAN access for asymmetrical transmission rates up to 100 Mbps.The VDSL2 Mini-PIM supports Annex A over plain old telephone service (POTS), which includes one physical very high bit-rate digital subscriber line (VDSL) port. The VDSL2 Annex A (over POTS) Mini-PIM supports ADSL, ADSL2, or ADSL2+ fallback standards to provide the flexibility to support multiple DSL options.
