Compatibility Information
Designed For	Juniper Networks SRX210 Services Gateway SRX210 Services Gateway Enhanced SRX210 Services Gateway High Memory Enhanced SRX220 Services Gateway SRX240 Services Gateway
Environmental Parameters
Humidity Range Operating	5 - 90%
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Compatible Slots	1 x expansion slot
Interfaces	1 x network
General
Cabling Type	Coax
Designed For	Juniper Networks SRX210 Services Gateway SRX210 Services Gateway Enhanced SRX210 Services Gateway High Memory Enhanced SRX220 Services Gateway SRX240 Services Gateway
Device Type	Expansion module
Dimensions (WxDxH)	3.7 in x 5.7 in x 0.8 in
Form Factor	Plug-in module
Frequency Band	1002 MHz
Ports Qty	1 ports
Miscellaneous
Compliant Standards	FCC Class A certified
Networking
Cabling Type	Coax
Connectivity Technology	Wired
Frequency Band	1002 MHz
Line Coding Format	8 QAM 32 QAM 128 QAM 64 QAM 256 QAM QPSK 16 QAM
Remote Management Protocol	Telnet HTTP
Status Indicators	Link activity power

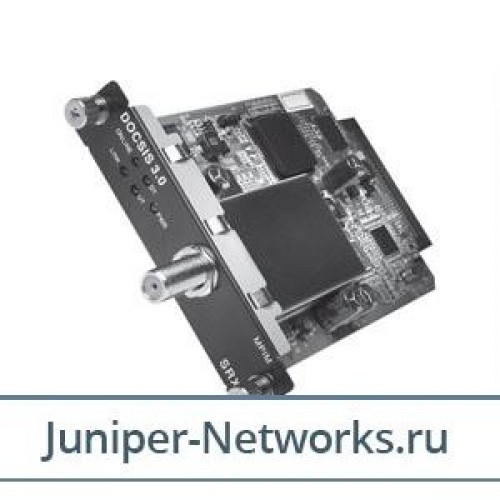

Juniper Networks 1-Port Docsis 3

Juniper Networks 1-Port Docsis 3.0 Cable Modem Mini-PIM for SRX. Backward compatible with Docsis 2.0 and 1.1 The DOCSIS 3.0 cable modem Mini-PIM connects to a CMTS network via the single DOCSIS 3.0 interface. It is backwards compatible to DOCSIS 2.0, 1.1, and 1.0 protocols for flexibility to support multiple cable services with a single line. The DOCSIS 3.0 cable modem Mini-PIM has interoperability with leading vendor products.
