Environmental Parameters
Humidity Range Operating	5 - 90%
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Expansion Slot(s)	PC Card ¦ 4 (total) / 4 (free) x expansion slot
Interfaces	Management : 1 x 10Base-T/100Base-TX - RJ-45 ¦ Management : 2 x RS-232 - 9 pin D-Sub (DB-9) ¦ 2 x 10Base-T/100Base-TX - RJ-45
General
Compliant Standards	IEEE 802.1Q
Data Link Protocol	Ethernet Fast Ethernet
Device Type	Router
Dimensions (WxDxH)	17.5 in x 18 in x 3.5 in
Enclosure Type	Desktop - 2U
Features	Firewall protection layer 3 switching layer 2 switching DHCP support NAT support VPN support VLAN support DoS attack prevention packet filtering IPv6 support firmware upgradable DDos attack prevention
Network / Transport Protocol	TCP/IP L2TP IPSec PPPoA
Power	AC 120/230 V ( 50/60 Hz )
Remote Management Protocol	SNMP 2 SNMP 3
Routing Protocol	OSPF IS-IS RIP-2 BGP DVMRP PIM-SM static IP routing PIM-DM IGMPv3 PIM-SSM
Miscellaneous
Compliant Standards	BSMI VCCI Class B ITE EN 60950 EN 61000-3-2 IEC 825-1/EN 60825-1 class 1 UL 60950 EN55022 Class B AS/NZ 3548 Class B FCC Part 15 B EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 CSA C22.2 No. 60950-00 EN 61000-4-5 EN 61000-4-11
Power
Installed Qty	1 (installed) / 2 (max)
Power Device	Power supply - 400 Watt
Voltage Required	AC 120/230 V ( 50/60 Hz )
Software / System Requirements
Software Included	Drivers & Utilities

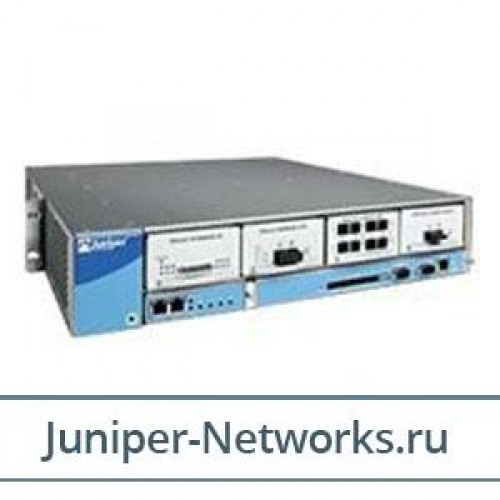

Juniper M7i Base Unit: 4 PIC slot chassis, 2 built-in Fast Ethernet Ports (RJ Connectors), cooling, midplane, 1 AC power supply, JUNOS, 1 Forwarding Engine, 1 Routing Engine

Juniper M7i Base Unit: 4 PIC slot chassis, 2 built-in Fast Ethernet Ports (RJ Connectors), cooling, midplane, 1 AC power supply, JUNOS, 1 Forwarding Engine, 1 Routing Engine. Optional flash media kit sold separately. Juniper Networks M-series multiservice edge routing portfolio uniquely combines best-in-class IP/MPLS capabilities with unmatched reliability, stability, security, and service richness. These multiservice edge routing platforms allow providers to consolidate multiple networks onto a single IP/MPLS infrastructure, while simultaneously generating new revenues with leading-edge services. Juniper Networks M-series multiservice edge routing systems use a hardware-based approach combined with the highly scalable, secure, and reliable JUNOS software, which enables multiple services without compromise on a single IP/MPLS platform. Providers enjoy maximized revenue and minimized operational and capital costs.Deployed predominantly at the service-provider edge and in high-end enterprise applications, the IP/MLS M-series multiservice edge routing family is capable of supporting current and emerging Layer 2 and Layer 3 services. From a Layer 2 perspective, the J-FASE (Juniper Frame and ATM Service Emulation) toolkit, combined with M-series multiservice edge routing performance, enables accurate emulation of ATM and Frame Relay services over MPLS. The same multiservice edge routing platform supports rich Ethernet services, enabling providers to capture revenue from this emerging service. Layer 2.5 Interworking VPNs are available to smoothly migrate customers from ATM/FR to Ethernet services, as demand dictates. The same IP/MLS M-series multiservice edge routing platform also delivers rich Layer 3 services, including the industry's most scalable and comprehensive Layer 3 VPN portfolio, granular per logical interface QoS, hardware-based IPv6, multicast, NAT, stateful firewall, and IPSec encryption. New revenues are generated faster and more cost-effectively with the scalable policy control of the SDX-300 service deployment system leveraging these rich features.
