M7i Multiservice Edge Router Juniper - M Серия
| Aggregate Half-Duplex Throughput | |
| 10 Gbps | Да |
| Chassis per Rack | |
| 24 | Да |
| Dimensions | |
| 3.5 x 17.5 x 18 in | Да |
| 8.9 x 44.5 x 45.7 cm | Да |
| FPC Slots and Full Duplex Throughput per Slot | |
| 1 built-in 4 Gbps additional 1 Gbps for FIC | Да |
| Maximum Weight | |
| 38.2 lbs / 17.3 Kg | Да |
| Mounting | |
| Front or center | Да |
| PICs per Chassis | |
| 4 plus 2 additional fixed FE or 1 fixed GE ports | Да |
| Power Options | |
| AC System Input Power (Fully Loaded) | 4 to 2 A- 100 to 240 VAC- 47 to 63 Hz- 400 watts |
| DC Input Power (Fully Loaded) | 10 A at -48 VDC- 378 watts |
| No. of power supplies required (non-redundant/redundant) | 1/2 |
| Redundancy | |
| No | Да |

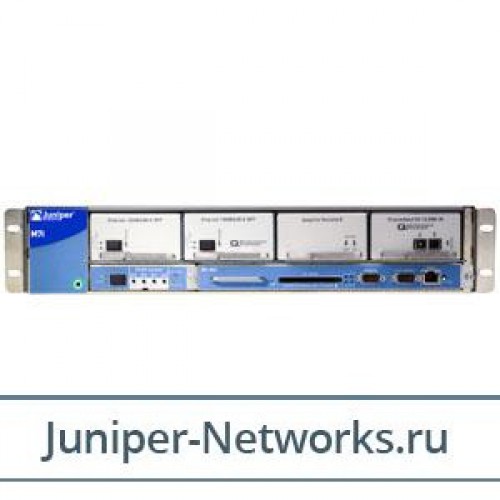

The M7i Multiservice Edge Router is the M Series most compact edge routing platform
The M7i Multiservice Edge Router is the M Series most compact edge routing platform. With its 10 Gbps of throughput and integrated service capabilities, the M7i Multiservice Edge Router is ideal as an IP/MPLS provider edge router in small POPs or as an enterprise edge router for Internet gateway or branch aggregation.Разработано «Джусто Веб» © 2014
