Environmental Parameters
Humidity Range Operating	5 - 90% (non-condensing)
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Expansion Slot(s)	8 (total) / 6 (free) x Flexible PIC Concentrator (FPC) ¦ 32 (total) / 32 (free) x expansion slot
Installed Modules Qty (Max)	6 (installed) / 8 (max)
Interfaces	Management : 2 x RS-232 - 9 pin D-Sub (DB-9) ¦ Management : 1 x 10Base-T/100Base-TX - RJ-45
General
Compliant Standards	IEEE 802.3ad (LACP)
Data Link Protocol	Ethernet ATM Fast Ethernet Gigabit Ethernet Frame Relay SONET/SDH TDM MLPPP MLFR
Data Transfer Rate	320 Gbps
Device Type	Router - with 1 x Juniper Networks Control Board 1 x Routing Engine 4 x Switch Interconnect Boards 4 x Power Entry Modules
Dimensions (WxDxH)	17.4 in x 25.7 in x 34.8 in
Enclosure Type	Rack-mountable - modular
Features	Modular design hot swap module replacement layer 3 switching layer 2 switching NAT support VPN support MPLS support VLAN support DoS attack prevention manageable IPv6 support Intrusion Prevention System (IPS) MPLS Fast Reroute (FRR) Automatic Protection Switching (APS) Quality of Service (QoS) Bidirectional Forwarding Detection (BFD) LACP support Virtual Routing and Forwarding (VRF) Class of Service (CoS)
Network / Transport Protocol	RSVP IPSec
Performance	Aggregate throughput : 385 Mpps
Remote Management Protocol	SNMP 2 SNMP 3 HTTP
Routing Protocol	OSPF IS-IS BGP IGMPv2 IGMP VRRP PIM-SM PIM-DM IGMPv3 GRE OSPFv3 MSDP MLD
Miscellaneous
Compliant Standards	ETSI EN 60950 EN 61000-3-2 VCCI Class A ITE EN 61000-3-3 EN55022 Class A UL 60950 Third Edition EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 EN 61000-4-5 EN 61000-4-11 FCC Part 15 A NEBS EN 60825-1 AS/NZS 3548 Class A BSMI Class A
Included Accessories	1 GB USB flash drive
Power
Installed Qty	4 (installed) / 4 (max)
Power Device	Power supply - hot-plug / redundant - plug-in module

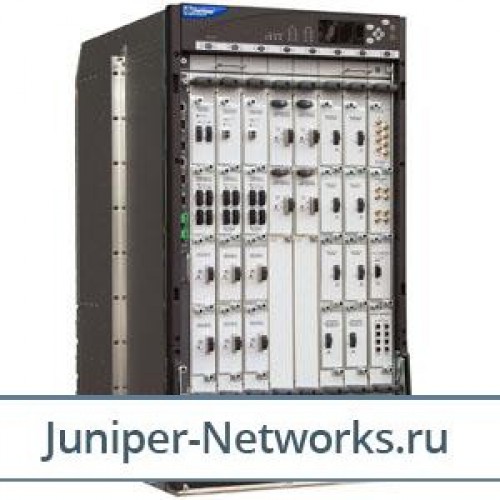

Juniper M320 Base Unit – includes Control Board, 4 Switch Interconnect Boards, 1 Routing engine, and 4 Power Entry Modules *SEE NOTES The M320 is a high performance, 10 Gbps-capable, distributed architecture edge router

Juniper M320 Base Unit – includes Control Board, 4 Switch Interconnect Boards, 1 Routing engine, and 4 Power Entry Modules *SEE NOTES The M320 is a high performance, 10 Gbps-capable, distributed architecture edge router. The M320 platform is ideal for medium-sized backbone cores requiring predictable performance for feature-rich infrastructures and also supports provider edge services in 10-gigabit POPs with the ability to support up to 32 type 1 and type 2 PICs and up to 16 type 3 PICs for 10 Gbps uplinks. In addition, this platform is ideal where switching fabric and routing engine redundancy are required. All major components are field replaceable, increasing system serviceability and reliability, and decreasing mean time to repair.
