Environmental Parameters
Humidity Range Operating	5 - 90%
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Expansion Slot(s)	8 expansion slot
Installed Modules Qty (Max)	8 (max)
Interfaces	Management : RS-232 - 9 pin D-Sub (DB-9) ¦ Management : 10Base-T/100Base-TX - RJ-45
General
Device Type	Modular expansion base
Dimensions (WxDxH)	17.4 in x 25.6 in x 34.8 in
Enclosure Type	Desktop - modular
Features	Modular design hot swap module replacement manageable
Power	AC 120/230 V ( 50/60 Hz )
Miscellaneous
Compliant Standards	NEBS level 3 BSMI VCCI Class B ITE EN 60950 EN 61000-3-2 IEC 825-1/EN 60825-1 class 1 UL 60950 EN55022 Class B AS/NZ 3548 Class B FCC Part 15 B EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 EMC CSA C22.2 No. 60950-00 EN 61000-4-5 EN 61000-4-11
Power
Installed Qty	4 (installed) / 4 (max)
Power Device	Power supply - hot-plug / redundant - plug-in module
Voltage Required	AC 120/230 V ( 50/60 Hz )

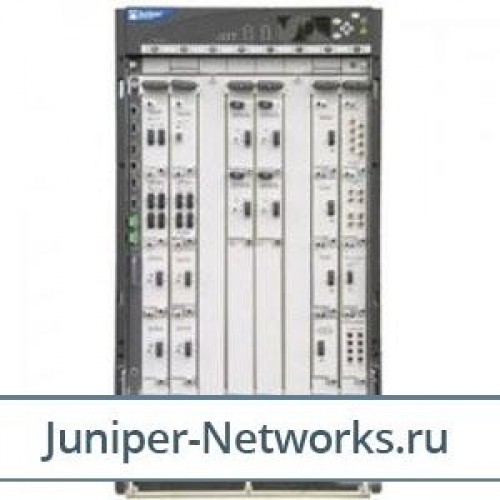

Juniper M320 AC Base Unit – includes Control Board, 4 Switch Interconnect Boards, 1 Routing engine, and 4 AC Power Entry Modules *SEE NOTES The M320 is a high performance, 10Gbps-capable, distributed architecture edge router

Juniper M320 AC Base Unit – includes Control Board, 4 Switch Interconnect Boards, 1 Routing engine, and 4 AC Power Entry Modules *SEE NOTES The M320 is a high performance, 10Gbps-capable, distributed architecture edge router. The M320 platform is ideal for medium-sized backbone cores requiring predictable performance for feature-rich infrastructures and also supports provider edge services in 10-gigabit POPs with the ability to support up to 32 type 1 and type 2 PICs and up to 16 type 3 PICs for 10 Gbps uplinks. In addition, this platform is ideal where switching fabric and Routing Engine redundancy are required. All major components are field replaceable, increasing system serviceability and reliability, and decreasing mean time to repair.This M320 AC Base Unit includes Control Board, 4 Switch Interconnect Boards, Routing engine with 1600MHz processor and 2GB memory, 128 MB external compact flash for routing engine, and 4 AC Power Entry Modules.
