Compatibility Information
Designed For	Juniper Networks J-series Services Router J2320 J2350 J4350 J6350 ¦ Juniper Networks Secure Services Gateway SSG 140 SSG 320M SSG 350M SSG 520 SSG 520 Base Memory System SSG 520M SSG 550 SSG 550 Base Memory System SSG 550M
Environmental Parameters
Humidity Range Operating	5 - 90%
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Compatible Slots	1 x expansion slot
Interfaces	8 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
General
Cabling Type	Ethernet 10Base-T Ethernet 100Base-TX Ethernet 1000Base-T
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Data Transfer Rate	1 Gbps
Designed For	J-series Services Router J2320 J2350 J4350 J6350- Secure Services Gateway SSG 140 SSG 320M SSG 350M SSG 520 SSG 520 Base Memory System SSG 520M SSG 550 SSG 550 Base Memory System SSG 550M
Device Type	Expansion module
Dimensions (WxDxH)	5.4 in x 6.5 in x 0.6 in
Form Factor	Plug-in module
Ports Qty	8 ports
System Requirements	JUNOS ScreenOS
Miscellaneous
Compliant Standards	VCCI Class B ITE EN 60950 UL 60950 Third Edition CSA 22.2 No. 60950 EN55022 Class B AS/NZ 3548 Class B FCC Part 15 B EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 EN 61000-4-5
Networking
Cabling Type	Ethernet 10Base-T Ethernet 100Base-TX Ethernet 1000Base-T
Connectivity Technology	Wired
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Data Transfer Rate	1 Gbps
Features	Auto-negotiation auto-uplink (auto MDI/MDI-X)
Status Indicators	Link activity
Software / System Requirements
OS Required	JUNOS ScreenOS

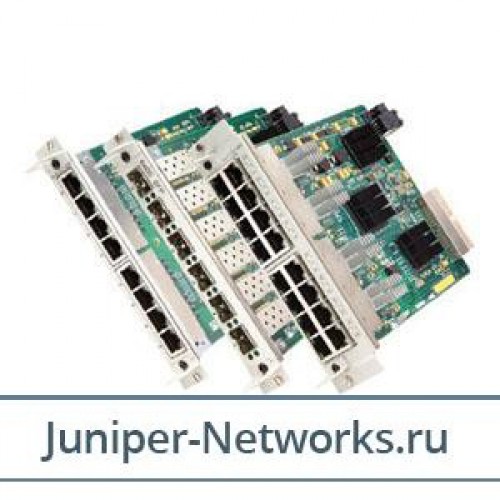

Juniper Networks 8 Port Gigabit Ethernet 10/100/1000 Copper Universal PIM - Spare Juniper Ethernet Universal Physical Interface Modules (UPIMs) are a set of common Ethernet interface modules that are shared between the Juniper Networks Secure Services Gateway 140, 520, 520M, 550, 550M, J4350 and J6350

Juniper Networks 8 Port Gigabit Ethernet 10/100/1000 Copper Universal PIM - Spare Juniper Ethernet Universal Physical Interface Modules (UPIMs) are a set of common Ethernet interface modules that are shared between the Juniper Networks Secure Services Gateway 140, 520, 520M, 550, 550M, J4350 and J6350. These modules implement the full set of layer 3-7 services offered in the ScreenOS and JUNOS operating systems and alternatively implement Ethernet switching for connecting local servers and PCs to the network.
