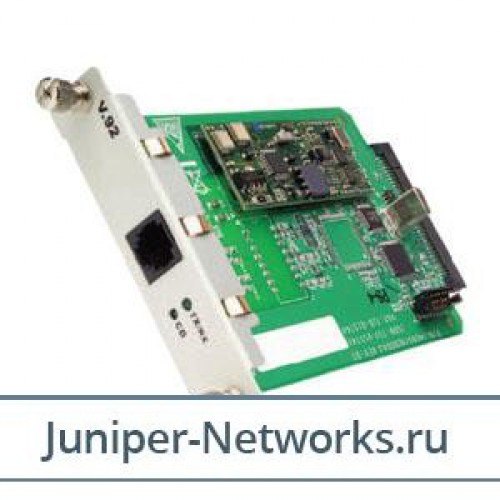

JXM-1V92-S Interface Module Juniper - J Серия

JXM-1V92-S Interface Module Juniper - J Серия

Производитель: Juniper
Модель:
Артикул: JXM-1V92-S

Количество:


в закладки сравнение
Compatibility Information
Designed For Juniper Networks Secure Services Gateway SSG 20
Environmental Parameters
Humidity Range Operating 5 - 90%
Max Operating Temperature 104 °F
Min Operating Temperature 32 °F
Expansion / Connectivity
Compatible Slots 1 x expansion slot
Interfaces 1 x modem
General
Data Compression Protocol ITU V.42bis ITU V.44
Designed For Secure Services Gateway SSG 20
Device Type Modem (analog)
Dimensions (WxDxH) 3.7 in x 5.7 in x 0.8 in
Enclosure Type Plug-in module
Max Transfer Rate 56 Kbps
Protocols & Specifications Bell 103 ITU V.21 Bell 212A ITU V.22 ITU V.23
System Requirements ScreenOS
Miscellaneous
Compliant Standards ETSI BSMI VCCI Class B ITE EN 60950 IEC 60950 EN55024 UL 60950 Third Edition CSA 22.2 No. 60950 EN55022 Class B IC CS-03 FCC Part 15 B EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 FCC Part 68 EN 61000-4-5 EN 61000-4-11
Modem
56K Technology K56Flex V.92
Connectivity Technology Wired
Data Compression Protocol ITU V.42bis ITU V.44
Max Transfer Rate 56 Kbps
Protocols & Specifications Bell 103 ITU V.21 Bell 212A ITU V.22 ITU V.23
Networking
Features Manageable
Remote Management Protocol HTTP
Software / System Requirements
OS Required ScreenOS

Juniper Networks 1 port v

Juniper Networks 1 port v.92 Mini Physical Interface Module The Juniper Networks single-port V.92 Mini Physical Interface Module (Mini-PIM) for the SSG 20 platform complements the five on-board 10/100 Ethernet interfaces with expanded WAN connectivity.
