Compatibility Information
Designed For	Juniper Networks Secure Services Gateway SSG 20
Environmental Parameters
Humidity Range Operating	5 - 90%
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Compatible Slots	1 x expansion slot
Interfaces	1 x serial - RS-232/422/449/530/530A/V.35/X.21 - 60 pin D-Sub (DB-60)
General
Data Link Protocol	HDLC Frame Relay RS-232 PPP RS-422 RS-530 X.21 V.35 RS-449 RS-530A
Data Transfer Rate	8 Mbps
Designed For	Secure Services Gateway SSG 20
Device Type	Expansion module
Dimensions (WxDxH)	3.7 in x 5.7 in x 0.8 in
Form Factor	Plug-in module
Miscellaneous
Compliant Standards	BSMI CNS 13438 Class A EN55022 Class A CSA 22.2 No. 60950 AS/NZ 3548 Class A FCC Part 15 CSA 22.2 No. 950 Third Edition
Networking
Connectivity Technology	Wired
Data Link Protocol	HDLC Frame Relay RS-232 PPP RS-422 RS-530 X.21 V.35 RS-449 RS-530A
Data Transfer Rate	8 Mbps
Features	Manageable
Line Coding Format	NRZ NRZI
Remote Management Protocol	Telnet HTTP
Status Indicators	Link activity active

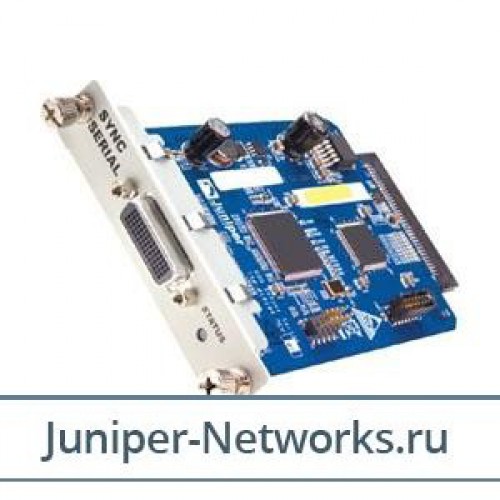

Juniper Networks 1 port Sync Serial Mini Physical Interface Module The Juniper Networks single-port serial Mini-PIM for the SSG 20 platform complements the five on-board 10/100 Ethernet interfaces with expanded WAN connectivity

Juniper Networks 1 port Sync Serial Mini Physical Interface Module The Juniper Networks single-port serial Mini-PIM for the SSG 20 platform complements the five on-board 10/100 Ethernet interfaces with expanded WAN connectivity. It offers up to 8 Mbps performance with support for a variety of serial network media types including X.21, V.35, RS-232, RS-449/RS-422 and EIA530/ EIA530A. The single-port serial Mini-PIM is equipped with a dedicated network processor that forwards traffic to the SSG 20 CPU where traffic decisions are made based upon security policies. This allows the SSG 20 to be deployed as a security appliance or as a secure router where serial connectivity is required.
