Compatibility Information
Designed For	Juniper Networks Secure Services Gateway SSG 20
Environmental Parameters
Humidity Range Operating	5 - 90%
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Compatible Slots	1 x expansion slot
Interfaces	1 x network - E1 - RJ-48
General
Designed For	Secure Services Gateway SSG 20
Device Type	DSU/CSU
Dimensions (WxDxH)	3.7 in x 5.7 in x 0.8 in
Enclosure Type	Plug-in module
Line Coding Format	HDB3
Line Rate	Fractional E-1/E-1
Max Transfer Rate	2.048 Mbps
Protocols & Specifications	HDLC
System Requirements	ScreenOS
Miscellaneous
Compliant Standards	ETSI BSMI VCCI Class B ITE EN 60950 IEC 60950 EN55024 UL 60950 Third Edition CSA 22.2 No. 60950 EN55022 Class B IC CS-03 FCC Part 15 B EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 FCC Part 68 EN 61000-4-5 EN 61000-4-11
Modem
Connectivity Technology	Wired
Features	Bit error rate tester (BERT)
Framing Format	G.704 G.703
Line Coding Format	HDB3
Line Rate	Fractional E-1/E-1
Max Transfer Rate	2.048 Mbps
Protocols & Specifications	HDLC
Networking
Features	Manageable
Remote Management Protocol	HTTP
Software / System Requirements
OS Required	ScreenOS

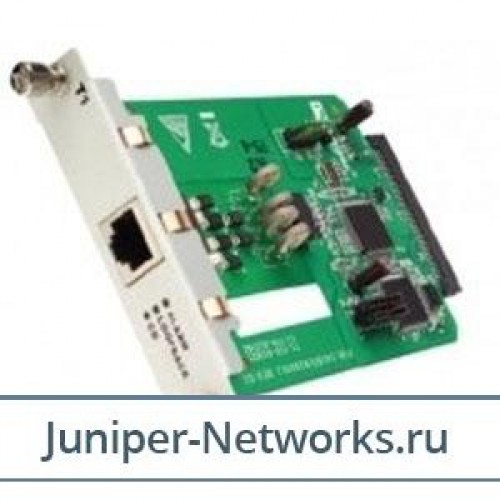

Juniper Networks 1 port E1 Mini Physical Interface Module The Juniper Networks optional single-port E1 Mini Physical Interface Modules (Mini-PIM) for the SSG 20 platform complement the five on-board 10/100 Ethernet interfaces with expanded WAN connectivity

Juniper Networks 1 port E1 Mini Physical Interface Module The Juniper Networks optional single-port E1 Mini Physical Interface Modules (Mini-PIM) for the SSG 20 platform complement the five on-board 10/100 Ethernet interfaces with expanded WAN connectivity. The E1 Mini-PIMs include one physical E1 port with an integrated CSU/DSU.
