Compatibility Information
Designed For	Juniper Networks Secure Services Gateway SSG 20
Environmental Parameters
Humidity Range Operating	5 - 90%
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Compatible Slots	1 x expansion slot
Interfaces	1 x network - ISDN BRI ST
General
Designed For	Secure Services Gateway SSG 20
Device Type	ISDN terminal adapter
Digital Signaling Protocol	ISDN DMS-100 ISDN - 1(NI-1) ISDN DSS1/ETSI
Dimensions (WxDxH)	3.7 in x 5.7 in x 0.8 in
Enclosure Type	Plug-in module
ISDN Interface	ISDN BRI ST
Networking	MLPPP
Protocols & Specifications	ITU Q.921 ITU I.430 ITU Q.920
Miscellaneous
Compliant Standards	ETSI BSMI VCCI Class B ITE EN 60950 IEC 60950 EN55024 UL 60950 Third Edition CSA 22.2 No. 60950 EN55022 Class B IC CS-03 FCC Part 15 B EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 FCC Part 68 EN 61000-4-5 EN 61000-4-11
Modem
Connectivity Technology	Wired
Digital Signaling Protocol	ISDN DMS-100 ISDN - 1(NI-1) ISDN DSS1/ETSI
ISDN Interface	ISDN BRI ST
Protocols & Specifications	ITU Q.921 ITU I.430 ITU Q.920
Networking
Data Link Protocol	MLPPP
Features	Manageable
Remote Management Protocol	HTTP

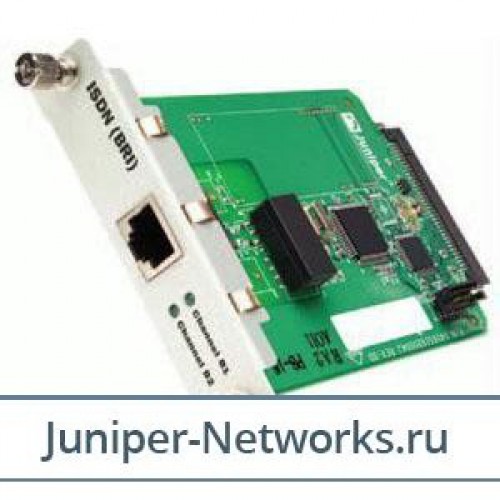

Juniper Networks 1 port ISDN S/T BRI Mini Physical Interface Module The Juniper Networks single-port ISDN BRI Mini Physical Interface Module (Mini-PIM) platform complements the five on-board 10/100 Ethernet interfaces with expanded WAN connectivity

Juniper Networks 1 port ISDN S/T BRI Mini Physical Interface Module The Juniper Networks single-port ISDN BRI Mini Physical Interface Module (Mini-PIM) platform complements the five on-board 10/100 Ethernet interfaces with expanded WAN connectivity. The ISDN BRI Mini-PIM includes a single physical port supporting ISDN BRI S/T interface types.
