Environmental Parameters
Humidity Range Operating	5 - 90%
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Compatible Slots	1 x expansion slot
Interfaces	1 x modem - ADSL2+ - RJ-11
General
Device Type	DSL modem
Digital Signaling Protocol	ADSL ADSL2 ADSL2+
Dimensions (WxDxH)	3.7 in x 5.7 in x 0.8 in
Enclosure Type	Plug-in module
Networking	ATM MLPPP
Protocols & Specifications	ITU G.994.1 (G.hs) ITU G.992.3 (G.DMT.bis) ITU G.992.5 ITU G.992.1 (G.DMT) Annex A
System Requirements	ScreenOS
Miscellaneous
Compliant Standards	ETSI BSMI VCCI Class B ITE EN 60950 IEC 60950 EN55024 UL 60950 Third Edition CSA 22.2 No. 60950 EN55022 Class B IC CS-03 FCC Part 15 B EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 FCC Part 68 EN 61000-4-5 EN 61000-4-11
Modem
Connectivity Technology	Wired
Digital Signaling Protocol	ADSL ADSL2 ADSL2+
Framing Format	ANSI T1.413
Protocols & Specifications	ITU G.994.1 (G.hs) ITU G.992.3 (G.DMT.bis) ITU G.992.5 ITU G.992.1 (G.DMT) Annex A
Networking
Data Link Protocol	ATM MLPPP
Features	Manageable
Network / Transport Protocol	AAL5
Remote Management Protocol	Telnet HTTP
Software / System Requirements
OS Required	ScreenOS

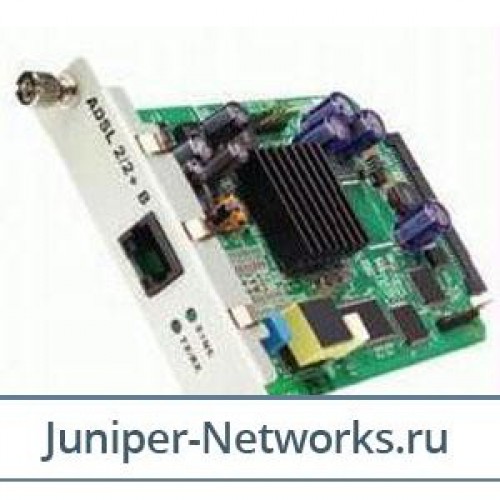

Juniper Networks 1 port ADSL2+ Annex A Mini Physical Interface Module The Juniper Networks ADSL2/2+ Mini-Physical Interface Modules (Mini-PIMs) are for use with the SSG 20 platform

Juniper Networks 1 port ADSL2+ Annex A Mini Physical Interface Module The Juniper Networks ADSL2/2+ Mini-Physical Interface Modules (Mini-PIMs) are for use with the SSG 20 platform. The ADSL2/2+ Mini-PIMs, one supporting Annex A (over POTS) and the other Annex B (over ISDN), each include one physical ADSL port that support ADSL, ADSL2 or ADSL2+ protocols.
