Compatibility Information
Designed For	Juniper Networks J-series Services Router J2320 J2350 J4300 J4350 J6300 J6350
Environmental Parameters
Humidity Range Operating	5 - 90%
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Compatible Slots	1 x expansion slot
Interfaces	4 x network - ISDN BRI U - RJ-45
General
Designed For	J-series Services Router J2320 J2350 J4300 J4350 J6300 J6350
Device Type	ISDN terminal adapter
Digital Ports Qty	4
Digital Signaling Protocol	ISDN DMS-100 ISDN - 1(NI-1) ISDN DSS1/ETSI
Dimensions (WxDxH)	5.4 in x 6.5 in x 0.6 in
Enclosure Type	Plug-in module
ISDN Interface	ISDN BRI U
Protocols & Specifications	ITU Q.921 ITU I.430 ITU Q.920
Miscellaneous
Compliant Standards	ETSI BSMI VCCI Class B ITE EN 60950 IEC 60950 EN55024 UL 60950 Third Edition CSA 22.2 No. 60950 EN55022 Class B IC CS-03 FCC Part 15 B EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 FCC Part 68 EN 61000-4-5 EN 61000-4-11
Modem
Connectivity Technology	Wired
Digital Ports Qty	4
Digital Signaling Protocol	ISDN DMS-100 ISDN - 1(NI-1) ISDN DSS1/ETSI
ISDN Interface	ISDN BRI U
Protocols & Specifications	ITU Q.921 ITU I.430 ITU Q.920
Networking
Features	Manageable
Remote Management Protocol	Telnet HTTP

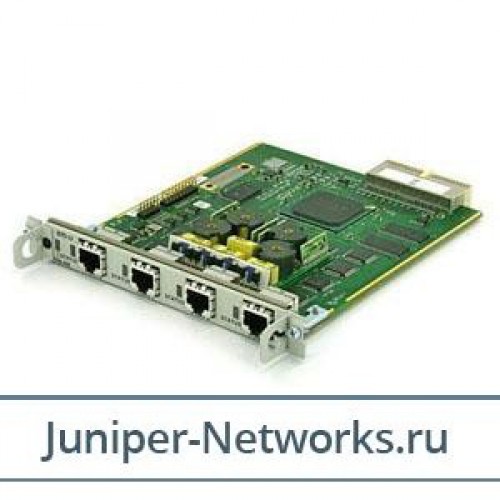

Juniper Networks 4xISDN BRI - U Interface - Spare The Juniper 4-port ISDN BRI PIM provides the physical connection to ISDN network media types receiving incoming packets from the network and transmitting outgoing packets to the network

Juniper Networks 4xISDN BRI - U Interface - Spare The Juniper 4-port ISDN BRI PIM provides the physical connection to ISDN network media types receiving incoming packets from the network and transmitting outgoing packets to the network. The Juniper 4-port ISDN BRI PIM is equipped with a dedicated network processor that forwards incoming data packets to the Routing Engine and receives outgoing data packets from the Routing Engine while performing framing and line-speed signaling.
