Compatibility Information
Designed For	Juniper Networks J-series Services Router J2320 J2350 J4300 J4350 J6300 J6350
Environmental Parameters
Humidity Range Operating	5 - 90%
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Compatible Slots	1 x expansion slot
Interfaces	2 x modem - SHDSL
General
Designed For	J-series Services Router J2320 J2350 J4300 J4350 J6300 J6350
Device Type	DSL modem
Digital Signaling Protocol	SHDSL
Dimensions (WxDxH)	5.4 in x 6.5 in x 0.6 in
Enclosure Type	Plug-in module
Max Transfer Rate	4.6 Mbps
Protocols & Specifications	ITU G.991.2 (G.shdsl) ITU G.994.1 (G.hs) ITU G.997.1
Miscellaneous
Compliant Standards	ETSI BSMI VCCI Class B ITE EN 60950 IEC 60950 EN55024 UL 60950 Third Edition CSA 22.2 No. 60950 EN55022 Class B IC CS-03 FCC Part 15 B EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 FCC Part 68 EN 61000-4-5 EN 61000-4-11
Modem
Connectivity Technology	Wired
Digital Signaling Protocol	SHDSL
Max Transfer Rate	4.6 Mbps
Protocols & Specifications	ITU G.991.2 (G.shdsl) ITU G.994.1 (G.hs) ITU G.997.1
Networking
Features	Manageable
Remote Management Protocol	Telnet HTTP

Juniper Networks 2 Port 2-wire or 1 Port 4-wire G

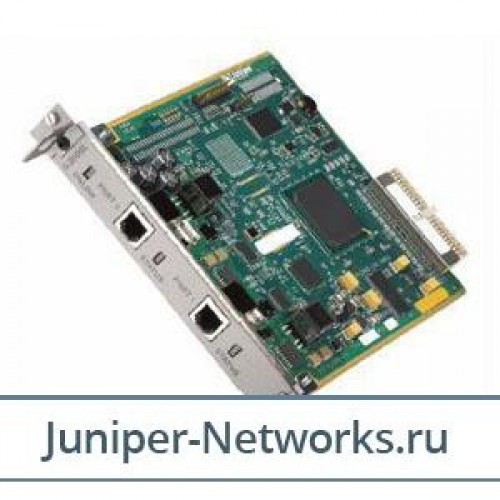

Juniper Networks 2 Port 2-wire or 1 Port 4-wire G.SDHSL PIM - Spare The Juniper G.SHDSL PIM (Physical Interface Module) provides the physical connection to G.SHDSL network media types, receiving incoming packets from the network and transmitting outgoing packets to the network. The Juniper G.SHDSL PIM is equipped with a dedicated network processor that forwards incoming data packets to the Routing Engine, and receives outgoing data packets from the Routing Engine. During this process, the PIM performs framing and line-speed signaling.
