Compatibility Information
Designed For	Juniper Networks J-series Services Router J2320 J2350 J4300 J4350 J6300 J6350
Environmental Parameters
Humidity Range Operating	5 - 90%
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Compatible Slots	1 x expansion slot
Interfaces	2 x network - T1/E1 - RJ-45
General
Data Link Protocol	HDLC
Designed For	J-series Services Router J2320 J2350 J4300 J4350 J6300 J6350
Device Type	Expansion module
Dimensions (WxDxH)	5.4 in x 6.5 in x 0.6 in
Form Factor	Plug-in module
Line Rate	T-1/E-1
Ports Qty	2 ports
System Requirements	JUNOS
Miscellaneous
Compliant Standards	NEBS level 3 FCC Class A certified ETSI BSMI EN 60950 EN 61000-3-2 UL 60950 Third Edition CSA 22.2 No. 60950 EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 FCC Part 15 AS/NZS 3548 EN 61000-4-5 EN 61000-4-11
Networking
Connectivity Technology	Wired
Data Link Protocol	HDLC
Features	Integrated CSU/DSU
Line Coding Format	AMI B8ZS HDB3
Line Rate	T-1/E-1
Status Indicators	Port status standby
Software / System Requirements
OS Required	JUNOS

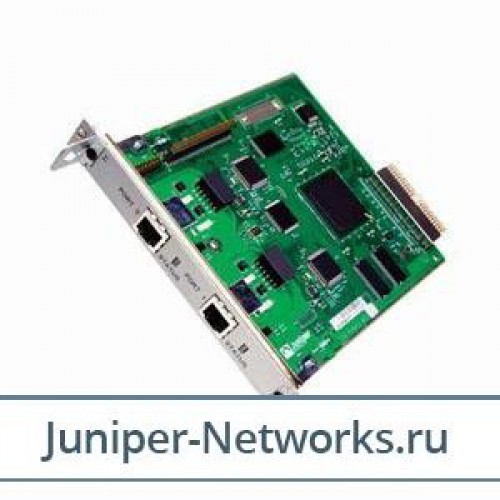

Juniper Networks 2 Port Channelized T1/E1 PIM - Spare The Juniper Dual-port Channelized T1/E1 PIM provides the physical connection to channelized T1 or E1 network media types, receiving incoming packets from the network and transmitting outgoing packets to the network

Juniper Networks 2 Port Channelized T1/E1 PIM - Spare The Juniper Dual-port Channelized T1/E1 PIM provides the physical connection to channelized T1 or E1 network media types, receiving incoming packets from the network and transmitting outgoing packets to the network. The Juniper Dual-port Channelized T1/E1 PIM is equipped with a dedicated network processor that forwards incoming data packets to the routing engine, and receives outgoing data packets from the routing engine. During this process, the PIM performs channelized T1 or E1 framing and line-speed signaling.
