Expansion / Connectivity
Expansion Slot(s)	5 (total) / 5 (free) x expansion slot ¦ 4 memory
Installed Modules Qty (Max)	0 (installed) / 5 (max)
Interfaces	4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Management : console - RJ-45 ¦ USB : ¦ Management : auxiliary - RJ-45
General
Compliant Standards	IEEE 802.1Q
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet HDLC Frame Relay RS-232 PPP RS-530 X.21 V.35 RS-449 MLPPP FRF.15 FRF.16 FRF.12
Device Type	Router
Dimensions (WxDxH)	17.5 in x 14.7 in x 2.6 in
Enclosure Type	Desktop - modular - 1.5U
Features	Modular design firewall protection 56-bit encryption 168-bit encryption DHCP support NAT support hardware encryption VPN support MPLS support LDAP support VLAN support Syslog support traffic shaping DoS attack prevention content filtering manageable IPv6 support High Availability 256-bit encryption firmware upgradable MPLS Fast Reroute (FRR) DDos attack prevention Weighted Random Early Detection (WRED)
Network / Transport Protocol	IPSec PPPoE
Performance	Forwarding performance (large packets) : 750+ Mbps ¦ Forwarding performance (IMIX) : 500 Mbps ¦ 3DES+SHA1 VPN performance (large packets) : 225 Mbps
Power	AC 120/230 V
Pricing Type	Trade Agreements Act (TAA) Compliance
Remote Management Protocol	SNMP 2 Telnet SNMP 3 HTTP
Routing Protocol	OSPF IS-IS RIP-2 BGP DVMRP VRRP PIM-SM static IP routing PIM-DM IGMPv3 OSPFv3 PIM-SSM
Miscellaneous
Compliant Standards	ETSI CSA UL VCCI Class B ITE BSMI CNS 13438 Class B cUL CB FCC Part 15 B FCC Part 68 / CS03 Issue 8 EMC CS-03 EN300-386
Pricing Type	Trade Agreements Act (TAA) Compliance
Power
Power Consumption Operational	80 Watt
Power Device	Power supply - 300 Watt
Voltage Required	AC 120/230 V
Software / System Requirements
OS Provided	JUNOS

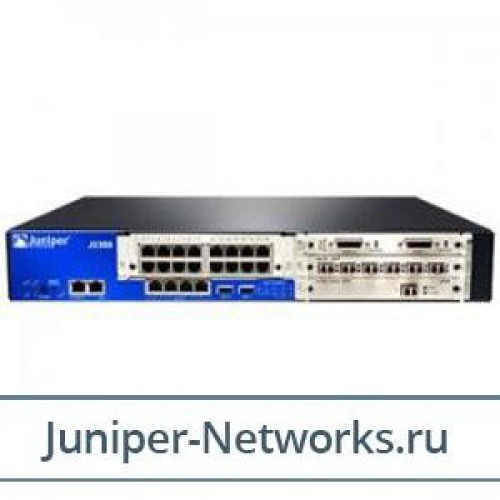

Juniper Networks J2350, JUNOS, High Memory (1GB), 5 PIM Slots, HW Crypto, AC Power Supply, TAA, 19" Rack Mount The Juniper Networks J2350 is a modular router, that supports Juniper Physical Interface Modules (PIMs), which provide a wide variety of common WAN and LAN interfaces, including Gigabit Ethernet

Juniper Networks J2350, JUNOS, High Memory (1GB), 5 PIM Slots, HW Crypto, AC Power Supply, TAA, 19" Rack Mount The Juniper Networks J2350 is a modular router, that supports Juniper Physical Interface Modules (PIMs), which provide a wide variety of common WAN and LAN interfaces, including Gigabit Ethernet.
