Environmental Parameters
Humidity Range Operating	10 - 90%
Max Operating Temperature	122 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Expansion Slot(s)	5 (total) / 5 (free) x expansion slot
Interfaces	1 x management - console - RJ-45 ¦ 4 x network - Ethernet 10Base-T/100Base-TX/1000Base-TX - RJ-45 ¦ 1 x management - auxiliary - RJ-45 ¦ 2 x USB
General
Capacity	Concurrent sessions : 48000 ¦ Connection / user qty : unlimited ¦ Security policies : 750 ¦ Security zones : 40 ¦ VPN tunnel interfaces : 200 ¦ Concurrent VPN tunnels : 350 ¦ Static routes : 10000 ¦ Authenticated users (internal database) : 1500
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet HDLC Frame Relay PPP MLPPP FRF.15 FRF.16
Device Type	Security appliance
Dimensions (WxDxH)	17.5 in x 15.1 in x 2.6 in
Enclosure Type	External - 1.5U
Features	Modular design firewall protection 56-bit encryption routing 168-bit encryption DHCP support NAT support hardware encryption VPN support PAT support LDAP support VLAN support Syslog support DoS attack prevention DiffServ support High Availability URL filtering 256-bit encryption DDos attack prevention Quality of Service (QoS) RADIUS support
Network / Transport Protocol	L2TP IPSec PPPoE SMTP POP3 IMAP
Performance	Firewall throughput (large packets) : 500+ Mbps ¦ Firewall throughput (IMIX) : 500 Mbps ¦ 3DES+SHA1 VPN performance (large packets) : 225 Mbps
Power	AC 120/230 V ( 50/60 Hz )
RAM Installed ( Max )	1 GB ( 1 GB )
Remote Management Protocol	SNMP 2 Telnet HTTP HTTPS
VoIP Protocols	H.323 MGCP SCCP SIP
IP Telephony
VoIP Protocols	H.323 MGCP SCCP SIP
Miscellaneous
Compliant Standards	FCC Class B certified CSA UL C-Tick BSMI cUL VCCI Class A ITE CB
Rack Mounting Kit	Included
Networking
Authentication Method	SecurID RADIUS X.509 certificates
Capacity	Concurrent sessions : 48000 ¦ Connection / user qty : unlimited ¦ Security policies : 750 ¦ Security zones : 40 ¦ VPN tunnel interfaces : 200 ¦ Concurrent VPN tunnels : 350 ¦ Static routes : 10000 ¦ Authenticated users (internal database) : 1500
Compliant Standards	IEEE 802.1x X.509
Connectivity Technology	Wired
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet HDLC Frame Relay PPP MLPPP FRF.15 FRF.16
Encryption Algorithm	DES Triple DES RSA MD5 AES IKE SHA-1 PKI
Features	Modular design firewall protection 56-bit encryption routing 168-bit encryption DHCP support NAT support hardware encryption VPN support PAT support LDAP support VLAN support Syslog support DoS attack prevention DiffServ support High Availability URL filtering 256-bit encryption DDos attack prevention Quality of Service (QoS) RADIUS support
Form Factor	External
Network / Transport Protocol	L2TP IPSec PPPoE SMTP POP3 IMAP
Performance	Firewall throughput (large packets) : 500+ Mbps ¦ Firewall throughput (IMIX) : 500 Mbps ¦ 3DES+SHA1 VPN performance (large packets) : 225 Mbps
Remote Management Protocol	SNMP 2 Telnet HTTP HTTPS
Routing Protocol	OSPF RIP-1 RIP-2 BGP IGMPv2 IGMP PIM-SM static IP routing PIM-SSM ECMP
Power
Power Device	Power supply - internal
Power Provided	300 Watt
Voltage Required	AC 120/230 V ( 50/60 Hz )
Processor / Memory / Storage
Hard Drive	None.
RAM Installed ( Max )	1 GB ( 1 GB )
Software / System Requirements
OS Provided	ScreenOS

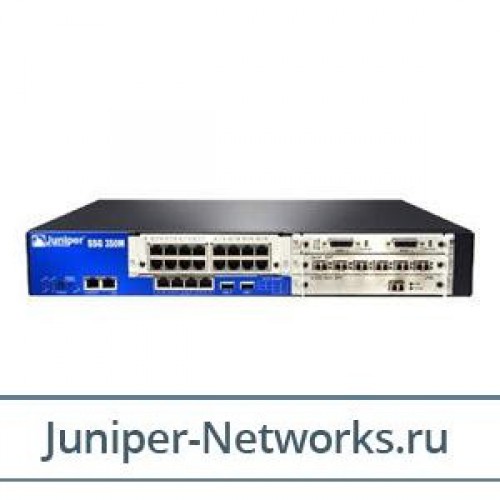

Juniper Networks Secure Services Gateway 350 System, ScreenOS, High Memory (1GB), 5 PIM Slots, HW Crypto, AC Power Supply, TAA, 19" Rack Mount The Juniper Networks Secure Services Gateway (SSG) 300 Series represents a class of purpose-built security appliance that delivers a perfect mix of performance, security and LAN/WAN connectivity for regional and branch office deployments

Juniper Networks Secure Services Gateway 350 System, ScreenOS, High Memory (1GB), 5 PIM Slots, HW Crypto, AC Power Supply, TAA, 19" Rack Mount The Juniper Networks Secure Services Gateway (SSG) 300 Series represents a class of purpose-built security appliance that delivers a perfect mix of performance, security and LAN/WAN connectivity for regional and branch office deployments. Traffic flowing in and out of the branch office is protected from worms, Spyware, Trojans, and malware by a complete set of Unified Threat Management (UTM) security features including Stateful firewall, IPSec VPN, IPS, Antivirus (includes Anti-Spyware, Anti-Adware, Anti-Phishing), Anti-Spam, and Web Filtering.Complementing the powerful UTM security features is a robust routing engine that allows the SSG 300 Series to be deployed as a traditional branch office router or as a combination firewall and routing device to reduce capital and operational expenses.
