Antenna
Antenna Qty	2
Communications
Digital Signaling Protocol	H.323 MGCP SIP
Voice Communication Support	VoIP
Environmental Parameters
Humidity Range Operating	10 - 90%
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Expansion Slot(s)	2 expansion slot
Interfaces	5 x network - Ethernet 10Base-T/100Base-TX - RJ-45 ¦ 1 x management - console - RJ-45
General
Capacity	Concurrent sessions : 4000 ¦ Security policies : 200 ¦ Connection / user qty : unlimited ¦ Authenticated users (internal database) : 100 ¦ Concurrent VPN tunnels : 25 ¦ Security zones : 10 ¦ Static routes : 1024
Data Link Protocol	Ethernet Fast Ethernet HDLC Frame Relay IEEE 802.11b PPP IEEE 802.11a IEEE 802.11g MLPPP FRF.15 FRF.16
Device Type	Security appliance
Digital Signaling Protocol	H.323 MGCP SIP
Dimensions (WxDxH)	11.6 in x 7.4 in x 1.8 in
Enclosure Type	External
Features	Modular design firewall protection 56-bit encryption routing 168-bit encryption DHCP support NAT support VPN support PAT support LDAP support VLAN support Syslog support DoS attack prevention packet filtering DiffServ support manageable MAC address filtering antivirus analysis High Availability URL filtering Deep Packet Inspection (DPI) Transparency DDos attack prevention
Network / Transport Protocol	NetBEUI/NetBIOS L2TP IPSec PPPoE
Performance	VPN throughput (3DES IPSec) : 40 Mbps ¦ Firewall throughput : 160 Mbps
Ports Qty	5
Power	AC 120/230 V
RAM Installed ( Max )	256 MB
Remote Management Protocol	SNMP 2 SNMP Telnet HTTP HTTPS
Miscellaneous
Compliant Standards	FCC Class B certified ETSI CSA UL C-Tick BSMI cUL VCCI Class A ITE CB
Rack Mounting Kit	Optional
Networking
Authentication Method	Secure Shell (SSH) RADIUS X.509 certificates Secure Shell v.2 (SSH2) LDAP Extensible Authentication Protocol (EAP)
Capacity	Concurrent sessions : 4000 ¦ Security policies : 200 ¦ Connection / user qty : unlimited ¦ Authenticated users (internal database) : 100 ¦ Concurrent VPN tunnels : 25 ¦ Security zones : 10 ¦ Static routes : 1024
Compliant Standards	IEEE 802.1Q IEEE 802.11b IEEE 802.11a IEEE 802.11g IEEE 802.1x X.509 Wi-Fi CERTIFIED
Connectivity Technology	Wireless wired
Data Link Protocol	Ethernet Fast Ethernet HDLC Frame Relay IEEE 802.11b PPP IEEE 802.11a IEEE 802.11g MLPPP FRF.15 FRF.16
Encryption Algorithm	DES Triple DES RSA MD5 AES IKE TLS SHA-1 PEAP TTLS TKIP WPA WPA2 WPA-PSK PKI
Features	Modular design firewall protection 56-bit encryption routing 168-bit encryption DHCP support NAT support VPN support PAT support LDAP support VLAN support Syslog support DoS attack prevention packet filtering DiffServ support manageable MAC address filtering antivirus analysis High Availability URL filtering Deep Packet Inspection (DPI) Transparency DDos attack prevention
Form Factor	External
Network / Transport Protocol	NetBEUI/NetBIOS L2TP IPSec PPPoE
Performance	VPN throughput (3DES IPSec) : 40 Mbps ¦ Firewall throughput : 160 Mbps
Ports Qty	5
Remote Management Protocol	SNMP 2 SNMP Telnet HTTP HTTPS
Routing Protocol	OSPF RIP-1 RIP-2 BGP static IP routing ECMP
Status Indicators	Port status link activity power status alarm
Power
Power Device	Power supply - internal
Voltage Required	AC 120/230 V
Processor / Memory / Storage
Hard Drive	None.
RAM Installed ( Max )	256 MB
Software / System Requirements
OS Provided	ScreenOS

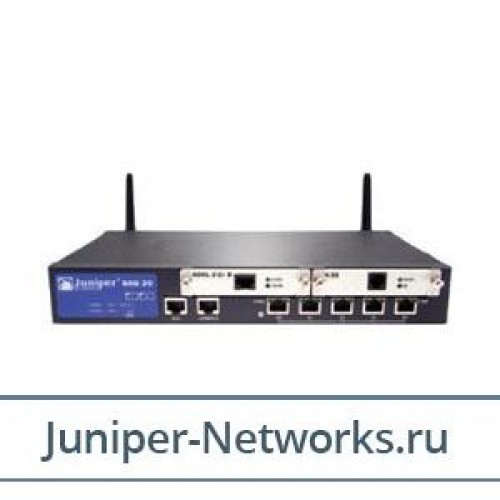

Juniper Networks Secure Services Gateway 20 with 2 port Mini-PIM slots, Wireless 802

Juniper Networks Secure Services Gateway 20 with 2 port Mini-PIM slots, Wireless 802.11a/b/g, 256 MB memory, ETSI The Juniper Networks Secure Services Gateway 20 (SSG 20) is a purpose-built security appliance that delivers a perfect blend of performance, security, routing and LAN/WAN connectivity for small branch office and small business deployments.The rich set of UTM security features allows the SSG 20 to be deployed as a stand alone network protection device. With its robust routing engine, the SSG 20 can also be deployed as a traditional branch office router or as a combination security and routing device to help reduce IT capital and operational expenditures.
