Communications
Digital Signaling Protocol	H.323 MGCP SIP
Voice Communication Support	VoIP
Environmental Parameters
Humidity Range Operating	10 - 90%
Max Operating Temperature	122 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Expansion Slot(s)	4 (total) / 4 (free) x expansion slot
Interfaces	8 x network - Ethernet 10Base-T/100Base-TX - RJ-45 ¦ Management ¦ 2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
General
Capacity	Concurrent sessions : 32000 ¦ Security policies : 500 ¦ Connection / user qty : unlimited ¦ Authenticated users (internal database) : 250 ¦ Concurrent VPN tunnels : 125 ¦ Security zones : 40 ¦ Static routes : 2048 ¦ VPN tunnels : 50
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet HDLC Frame Relay PPP MLPPP FRF.15 FRF.16
Device Type	Security appliance
Digital Signaling Protocol	H.323 MGCP SIP
Dimensions (WxDxH)	17.5 in x 15 in x 1.8 in
Enclosure Type	External - 1U
Features	Modular design firewall protection 56-bit encryption routing 168-bit encryption DHCP support NAT support VPN support PAT support LDAP support VLAN support Syslog support DoS attack prevention packet filtering DiffServ support manageable antivirus analysis High Availability URL filtering Deep Packet Inspection (DPI) Transparency DDos attack prevention SMTP traffic control
Network / Transport Protocol	NetBEUI/NetBIOS L2TP IPSec PPPoE
Performance	VPN throughput (3DES) : 100 Mbps ¦ Firewall throughput : 350 Mbps
Power	AC 120/230 V ( 50/60 Hz )
RAM Installed ( Max )	512 MB
Remote Management Protocol	SNMP 2 SNMP Telnet HTTP HTTPS
VoIP Protocols	H.323 MGCP SCCP SIP
IP Telephony
VoIP Protocols	H.323 MGCP SCCP SIP
Miscellaneous
Compliant Standards	FCC Class B certified CSA UL C-Tick BSMI cUL VCCI Class A ITE CB
Networking
Authentication Method	Secure Shell (SSH) RADIUS X.509 certificates Secure Shell v.2 (SSH2) LDAP
Capacity	Concurrent sessions : 32000 ¦ Security policies : 500 ¦ Connection / user qty : unlimited ¦ Authenticated users (internal database) : 250 ¦ Concurrent VPN tunnels : 125 ¦ Security zones : 40 ¦ Static routes : 2048 ¦ VPN tunnels : 50
Compliant Standards	IEEE 802.1Q IEEE 802.1x X.509
Connectivity Technology	Wired
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet HDLC Frame Relay PPP MLPPP FRF.15 FRF.16
Encryption Algorithm	DES Triple DES RSA MD5 AES IKE SHA-1 PKI
Features	Modular design firewall protection 56-bit encryption routing 168-bit encryption DHCP support NAT support VPN support PAT support LDAP support VLAN support Syslog support DoS attack prevention packet filtering DiffServ support manageable antivirus analysis High Availability URL filtering Deep Packet Inspection (DPI) Transparency DDos attack prevention SMTP traffic control
Form Factor	External
Network / Transport Protocol	NetBEUI/NetBIOS L2TP IPSec PPPoE
Performance	VPN throughput (3DES) : 100 Mbps ¦ Firewall throughput : 350 Mbps
Remote Management Protocol	SNMP 2 SNMP Telnet HTTP HTTPS
Routing Protocol	OSPF RIP-1 RIP-2 BGP static IP routing ECMP
Status Indicators	Port status link activity power status alarm
Power
Power Device	Power supply - internal
Voltage Required	AC 120/230 V ( 50/60 Hz )
Processor / Memory / Storage
Hard Drive	None.
RAM Installed ( Max )	512 MB
Software / System Requirements
OS Provided	ScreenOS

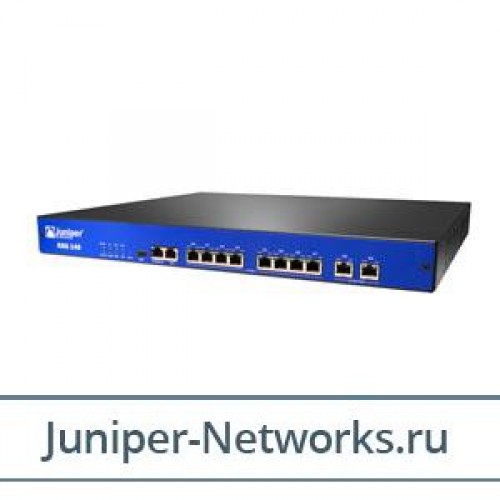

Juniper Networks SSG-140SH Secure Services Gateway with 512MB high memory, hardware crypto and AC power supply

Juniper Networks SSG-140SH Secure Services Gateway with 512MB high memory, hardware crypto and AC power supply. The Juniper Networks Secure Services Gateway 140 (SSG 140) is a purpose-built security appliance that delivers a perfect blend of performance, security, routing, and LANWAN connectivity for medium sized branch offices and business deployments. Traffic flowing in and out of the branch office is protected from worms, Spyware, Trojans, and malware by a complete set of Unified Threat Management (UTM) security features including Stateful firewall, IPSec VPN, IPS, Antivirus (includes Anti-Spyware, Anti-Adware, Anti-Phishing), Anti-Spam, and Web Filtering.The rich set of UTM security features allows the SSG 140 to be deployed as a stand-alone network protection device. With its robust routing engine, the SSG 140 can also be deployed as a traditional branch office router or as a combination security and routing device to help reduce IT capital and operational expenditures.The SSG 140 is ideally suited for branch offices, small to medium businesses and service providers that want a security platform to protect their WAN and high speed internal networks while extending the platform return on investment through high levels of system and interface modularity.
