Compatibility Information
Designed For	Juniper M-series M120 M320 M40e ¦ Juniper T-series T1600 T320 T640
Expansion / Connectivity
Compatible Slots	1 x expansion slot
Expansion Slot(s)	4 (total) / 4 (free) x SFP (mini-GBIC)
General
Data Link Protocol	HDLC Frame Relay SONET/SDH PPP PDH MLPPP FRF.15 FRF.16 MLFR
Designed For	M-series M120 M320 M40e- T-series T1600 T320 T640
Device Type	Expansion module
Dimensions (WxDxH)	4 in x 7 in x 1 in
Form Factor	Plug-in module
Line Rate	OC-3/STM-1
Ports Qty	4 ports
Miscellaneous
Compliant Standards	VCCI Class B ITE EN 60950 EN 61000-3-2 UL 1950 EN55022 Class B FCC Part 15 B EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 CCC EN 61000-4-5 EN 61000-4-11 BSMI Class B CSA C22.2 No. 950 AS/NZS 3548 Class B EN 60825-1
Networking
Connectivity Technology	Wired
Data Link Protocol	HDLC Frame Relay SONET/SDH PPP PDH MLPPP FRF.15 FRF.16 MLFR
Features	MPLS support manageable Low-latency queuing (LLQ) Weighted Random Early Detection (WRED)
Line Rate	OC-3/STM-1
Remote Management Protocol	SNMP

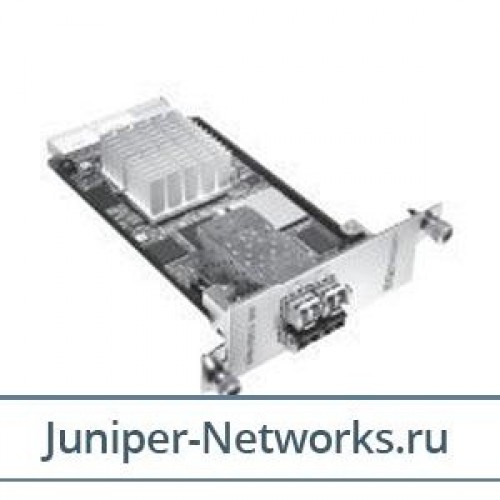

Juniper Networks 4-port Non-Channelized OC3 / Non-Channelized STM1 Enhanced IQ PIC, (Requires a pluggable SFP Optics Module - See Interface Accessories section) The Juniper Networks enhanced IQ PIC product family is a suite of highly sophisticated hardware and software modules that implement the next generation of class of service, class-based traffic management and high-level channelization capabilities

Juniper Networks 4-port Non-Channelized OC3 / Non-Channelized STM1 Enhanced IQ PIC, (Requires a pluggable SFP Optics Module - See Interface Accessories section) The Juniper Networks enhanced IQ PIC product family is a suite of highly sophisticated hardware and software modules that implement the next generation of class of service, class-based traffic management and high-level channelization capabilities.Juniper Networks enhanced IQ PIC family extends the technical advancements in traffic management technology, allowing service providers and enterprises to meet their most demanding needs in term of cost-effective TDM aggregation.Leveraging Juniper Networks flexible channelization capabilities of the Q2.0 FPGA, the enhanced IQ PIC family applies a rich set of CoS features and hierarchical traffic management capabilities that underpin the assured delivery of high-value multi-play services in both enterprise and service provider environments.
