Compatibility Information
Designed For	Juniper M-series M10i M20 M320 M320-EC M40e M7i ¦ Juniper T-series T320 T640
Expansion / Connectivity
Compatible Slots	1 x expansion slot
Expansion Slot(s)	4 SFP (mini-GBIC)
General
Compliant Standards	IEEE 802.1Q IEEE 802.1p
Data Link Protocol	Gigabit Ethernet
Data Transfer Rate	1 Gbps
Designed For	M-series M10i M20 M320 M320-EC M40e M7i- T-series T320 T640
Device Type	Expansion module
Form Factor	Plug-in module
Ports Qty	4 ports
System Requirements	JUNOS
Miscellaneous
Compliant Standards	RoHS
Networking
Compliant Standards	IEEE 802.1Q IEEE 802.1p
Connectivity Technology	Wired
Data Link Protocol	Gigabit Ethernet
Data Transfer Rate	1 Gbps
Features	VLAN support Weighted Round Robin (WRR) queuing MAC address filtering full duplex mode Weighted Random Early Detection (WRED) Quality of Service (QoS)
Status Indicators	Link activity transmit receive
Software / System Requirements
OS Required	JUNOS

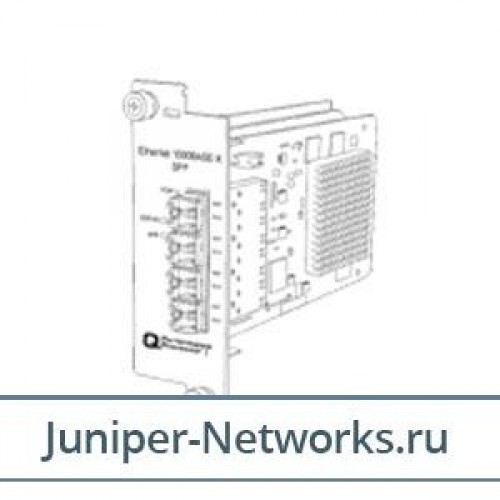

Juniper Networks 4-Port Type1 Gigabit Ethernet IQ2 PIC (Uses SFP Optics Modules - See Interface Accessories section) (Requires JUNOS 7

Juniper Networks 4-Port Type1 Gigabit Ethernet IQ2 PIC (Uses SFP Optics Modules - See Interface Accessories section) (Requires JUNOS 7.6 or higher) The Juniper IQ2 Physical Interface Card (PIC) family introduces the Ethernet Services Engine (ESE), applying a rich set of hierarchical QoS, fine-grained queuing, and oversubscription capabilities to address the most challenging Ethernet applications faced by service providers and enterprises. Key applications include service aggregation for the multiplay needs of business and residential users, MPLS services at Layers 2 and 3, and the convergence of legacy transport such as ATM and Frame Relay over Ethernet. IQ2 PICs are also ideal for data center applications, connecting broadband applications to the multiservice edge, or linking aggregation nodes to core routers or the Internet. Finally, the Juniper ESE design provides customizable service intelligence through programmable interface processors. IQ2 PICs enhance your service delivery offerings while minimizing TCO.The Juniper Networks IQ2 ESE PIC product family is a suite of highly sophisticated hardware and software modules that implement the next generation of QoS, traffic management, and intelligent oversubscription capabilities.
