Compatibility Information
Designed For	Juniper M-series M160 M320 M320-EC M40e ¦ Juniper T-series T320 T640
Expansion / Connectivity
Compatible Slots	1 x expansion slot
Interfaces	4 x network - E3 x 2
General
Designed For	M-series M160 M320 M320-EC M40e- T-series T320 T640
Device Type	DSU
Enclosure Type	Plug-in module
Line Coding Format	HDB3
Line Rate	E-3
Max Transfer Rate	34.368 Mbps
Networking	HDLC Frame Relay PPP
Miscellaneous
Cables Included	Network cable
Compliant Standards	ETSI BSMI VCCI Class B ITE EN 60950 IEC 60950 EN55024 UL 60950 Third Edition CSA 22.2 No. 60950 EN55022 Class B IC CS-03 FCC Part 15 B EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 FCC Part 68 EN 61000-4-5 EN 61000-4-11
Modem
Connectivity Technology	Wired
Framing Format	G.751
Line Coding Format	HDB3
Line Rate	E-3
Max Transfer Rate	34.368 Mbps
Networking
Data Link Protocol	HDLC Frame Relay PPP
Features	MPLS support

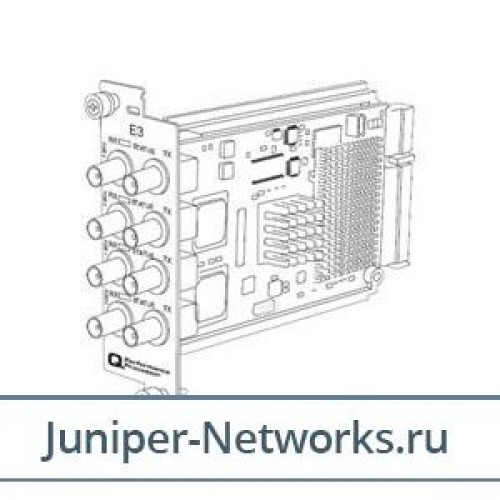

Juniper Networks 4-Port E3 IQ PIC E3 circuits for Internet access represent a key component of service provider business

Juniper Networks 4-Port E3 IQ PIC E3 circuits for Internet access represent a key component of service provider business. The highly dynamic nature of aggregation deployments requires that edge router interfaces be highly dependable, flexible, and operationally efficient.Juniper Networks E3 Physical Interface Cards (PICs) offer highly available, highly flexible solutions for edge applications. These links deliver not only business-critical Internet connectivity, but also an ever increasing portfolio of rich IP services, such as VPNs and flexible bandwidth. Leveraging cross-platform predictable performance, uniform JUNOS software, and seamless, hardware-based features, these PICs enable service providers to rapidly deploy and provision new IP services with no performance trade-off.
