Compatibility Information
Designed For	Juniper M-series M120 M160 M320 M320-EC M40e
Expansion / Connectivity
Compatible Slots	1 x expansion slot
Interfaces	10 x network - E1 - RJ-48
General
Data Link Protocol	HDLC Frame Relay PPP
Designed For	M-series M120 M160 M320 M320-EC M40e
Device Type	Expansion module
Form Factor	Plug-in module
Line Rate	E-1
Ports Qty	10 ports
System Requirements	JUNOS
Miscellaneous
Compliant Standards	NEBS level 3 FCC Class A certified ETSI BSMI EN 60950 EN 61000-3-2 UL 60950 Third Edition CSA 22.2 No. 60950 EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 FCC Part 15 AS/NZS 3548 EN 61000-4-5 EN 61000-4-11
Networking
Connectivity Technology	Wired
Data Link Protocol	HDLC Frame Relay PPP
Features	MPLS support Quality of Service (QoS)
Line Coding Format	HDB3
Line Rate	E-1
Remote Management Protocol	SNMP
Status Indicators	Port status fail alarm
Software / System Requirements
OS Required	JUNOS

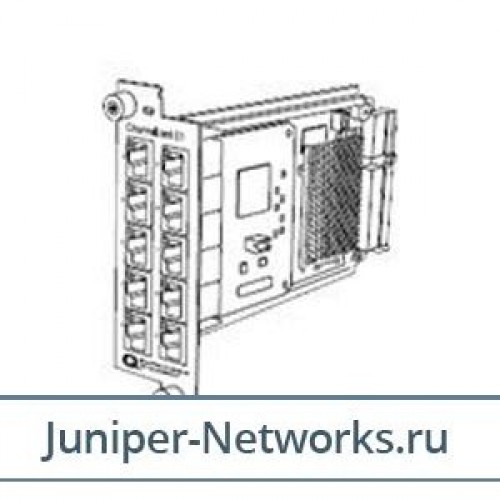

Juniper Networks 10-Port Channelized E1 to DS0 IQ PIC, RJ48, New The Juniper Networks Channelized Physical Interface Cards (PICs) are designed to support the aggregation of large numbers of customer connections at the edge of the network for delivery into the service provider core

Juniper Networks 10-Port Channelized E1 to DS0 IQ PIC, RJ48, New The Juniper Networks Channelized Physical Interface Cards (PICs) are designed to support the aggregation of large numbers of customer connections at the edge of the network for delivery into the service provider core. Service providers can maximize the utility of the existing infrastructure by channelizing from OC-12 down to DS0 speeds, enabling scarce and costly rack space to be optimized, maximizing profitability, revenue generation, and operational efficiency. The Channelized PICs leverage the strength of the industry-proven Junos operating system to ensure that every feature is available on every interface, regardless of bandwidth. The Juniper Networks Channelized IQ PIC is based on the Q Performance Processor (QPP), a custom high-performance ASIC designed to deliver enhanced functionality. Known as Channelized Intelligent Queuing (IQ) PICs, their key features including multilevel channelization, comprehensive and granular QoS capabilities, and extensive instrumentation and diagnostics.The Channelized E1 IQ PIC is ideal for aggregating low-speed n x DS0 dedicated access customers, providing enhanced QoS, deeper channelization, improved accounting capabilities, and a rich suite of provisioning and troubleshooting tools.
