Environmental Parameters
Humidity Range Operating	5 - 90%
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Expansion Slot(s)	16 (total) / 6 (free) x expansion slot
Installed Modules Qty (Max)	10 (installed) / 16 (max)
General
Compliant Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.1D IEEE 802.1Q IEEE 802.3ab IEEE 802.1p IEEE 802.3x IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.3ae IEEE 802.1s IEEE 802.1ab (LLDP)
Device Type	Switch - managed
Dimensions (WxDxH)	17.3 in x 29.1 in x 36.5 in
Enclosure Type	Desktop
Features	Flow control firewall protection BOOTP support ARP support VLAN support IPv6 support Quality of Service (QoS) Jumbo Frames support DHCP server temperature sensor
Power	AC 120/230 V
Power Over Ethernet (PoE)	PoE
Remote Management Protocol	SNMP 1 RMON 1 RMON 2 RMON 3 RMON 9 SNMP 3 SNMP 2c HTTP HTTPS SSH-2
Routing Protocol	IS-IS RIP-1 RIP-2 BGP IGMPv2 IGMP VRRP OSPFv2 IGMPv3
System Requirements	JUNOS
Miscellaneous
Compliant Standards	TUV GS cUL IEC 825-1/EN 60825-1 class 1 CSA 22.2 No. 60950 UL 60950-1 IEC 60950-1 EN 60950-1 CSA C22.2 No. 60950-1-03
Power
Installed Qty	6 (installed) / 6 (max)
Power Consumption Operational	1180 Watt
Power Device	Power supply - redundant - internal
Voltage Required	AC 120/230 V
Software / System Requirements
OS Required	JUNOS

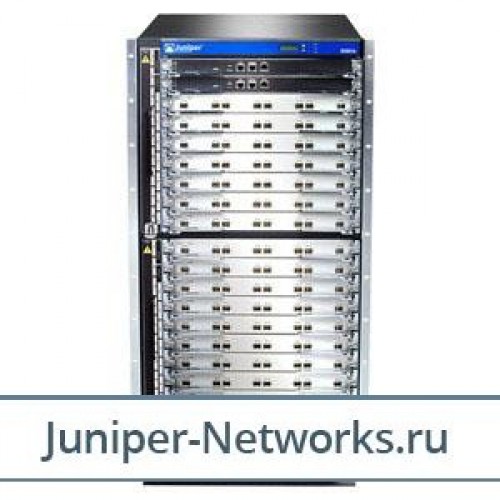

Juniper Networks Redundant EX8216 2kW AC system configuration: 16-slot chassis with passive midplane and 2x fan trays, 2x routing engines, 8x switch fabric modules, 6x 2000W AC PSUs with power cords, and all necessary blank panels The Juniper Networks EX8216 Ethernet Switch is a half-rack, midplane architecture, modular Ethernet switch that is designed for ultra high-density environments such as campus aggregation, data center, or high performance core switching environments

Juniper Networks Redundant EX8216 2kW AC system configuration: 16-slot chassis with passive midplane and 2x fan trays, 2x routing engines, 8x switch fabric modules, 6x 2000W AC PSUs with power cords, and all necessary blank panels The Juniper Networks EX8216 Ethernet Switch is a half-rack, midplane architecture, modular Ethernet switch that is designed for ultra high-density environments such as campus aggregation, data center, or high performance core switching environments. EX8216 switches provide high-availability and redundancy for all major hardware components. Juniper Networks EX8216 switches provide high performance, scalable connectivity, and carrier-class reliability.You can manage EX8216 switches using the same JUNOS interfaces that you use for other JUNOS platforms - the JUNOS command-line interface (CLI), the J-Web graphical interface, and Network and Security Manager (NSM).
