Environmental Parameters
Humidity Range Operating	5 - 90%
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Expansion Slot(s)	16 (total) / 6 (free) x expansion slot
Installed Modules Qty (Max)	10 (installed) / 16 (max)
General
Compliant Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.1D IEEE 802.1Q IEEE 802.3ab IEEE 802.1p IEEE 802.3x IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.3ae IEEE 802.1s IEEE 802.1ab (LLDP)
Device Type	Switch - managed
Dimensions (WxDxH)	17.3 in x 29.1 in x 36.5 in
Enclosure Type	Desktop
Features	Flow control firewall protection BOOTP support ARP support VLAN support IPv6 support Quality of Service (QoS) Jumbo Frames support DHCP server temperature sensor
Power	AC 120/230 V
Power Over Ethernet (PoE)	PoE
Remote Management Protocol	SNMP 1 RMON 1 RMON 2 RMON 3 RMON 9 SNMP 3 SNMP 2c HTTP HTTPS SSH-2
Routing Protocol	IS-IS RIP-1 RIP-2 BGP IGMPv2 IGMP VRRP OSPFv2 IGMPv3
System Requirements	JUNOS
Miscellaneous
Compliant Standards	TUV GS cUL IEC 825-1/EN 60825-1 class 1 CSA 22.2 No. 60950 UL 60950-1 IEC 60950-1 EN 60950-1 CSA C22.2 No. 60950-1-03
Power
Installed Qty	6 (installed) / 6 (max)
Power Consumption Operational	1180 Watt
Power Device	Power supply - redundant - internal
Voltage Required	AC 120/230 V
Software / System Requirements
OS Required	JUNOS

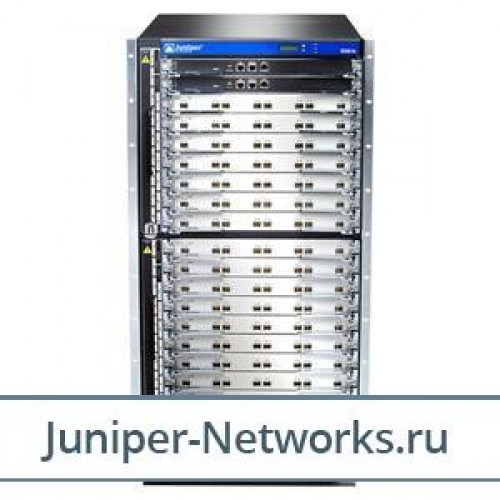

Juniper Networks Redundant EX8216 TAA-compliant system bundle: 16-slot chassis with passive midplane and 2x fan trays, 2x routing engines, 8x switch fabric modules, 6x 3000W AC PSUs with power cords, and all necessary blank panels The 16-slot Juniper Networks EX8216 Ethernet switch offers a high-density, high-performance platform for aggregating access switches deployed in data center top-of-rack or end-of-row applications, as well as for supporting Gigabit Ethernet and 10 Gigabit Ethernet server access in data center end-of-row deployments

Juniper Networks Redundant EX8216 TAA-compliant system bundle: 16-slot chassis with passive midplane and 2x fan trays, 2x routing engines, 8x switch fabric modules, 6x 3000W AC PSUs with power cords, and all necessary blank panels The 16-slot Juniper Networks EX8216 Ethernet switch offers a high-density, high-performance platform for aggregating access switches deployed in data center top-of-rack or end-of-row applications, as well as for supporting Gigabit Ethernet and 10 Gigabit Ethernet server access in data center end-of-row deployments. The EX8216 delivers approximately 1.9 billion packets per second (Bpps) of high-density, wire-speed 10-Gigabit Ethernet performance for the largest data center networks.
