Environmental Parameters
Humidity Range Operating	5 - 90%
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Expansion Slot(s)	8 (total) / 6 (free) x expansion slot
Installed Modules Qty (Max)	3 (installed) / 8 (max)
General
Compliant Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.1D IEEE 802.1Q IEEE 802.3ab IEEE 802.1p IEEE 802.3x IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.1x IEEE 802.3ae IEEE 802.1s IEEE 802.1ab (LLDP)
Device Type	Switch - managed
Dimensions (WxDxH)	17.2 in x 20.9 in x 24.3 in
Enclosure Type	Desktop
Features	Flow control firewall protection BOOTP support ARP support VLAN support IPv6 support Quality of Service (QoS) Jumbo Frames support DHCP server temperature sensor
Power	AC 120/230 V
Power Over Ethernet (PoE)	PoE
Remote Management Protocol	SNMP 1 RMON 1 RMON 2 RMON 3 RMON 9 SNMP 3 SNMP 2c HTTP HTTPS SSH-2
Routing Protocol	OSPF IGMPv2 IGMP VRRP OSPFv2 IGMPv3
System Requirements	JUNOS
Miscellaneous
Compliant Standards	TUV GS cUL IEC 825-1/EN 60825-1 class 1 CSA 22.2 No. 60950 UL 60950-1 IEC 60950-1 EN 60950-1 CSA C22.2 No. 60950-1-03
Power
Installed Qty	6 (installed) / 6 (max)
Power Consumption Operational	750 Watt
Power Device	Power supply - redundant - internal
Voltage Required	AC 120/230 V
Software / System Requirements
OS Required	JUNOS

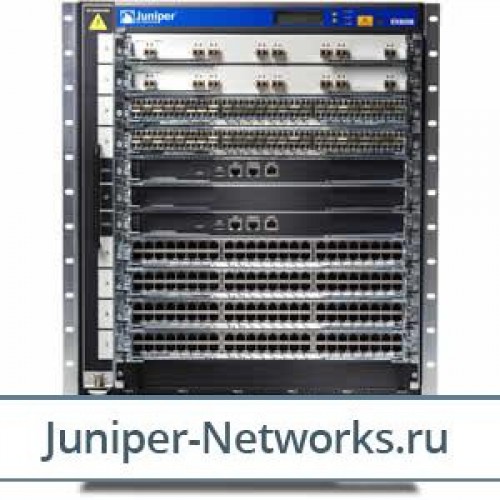

Juniper Networks Redundant EX8208 TAA-compliant system configuration: 8-slot chassis with passive backplane and 1x fan tray, 2x routing engine with switch fabric, 1x switch fabric module, 6x 2000W AC The EX8208 modular Ethernet switch, a member of the Juniper Networks EX series Ethernet switches, offers a flexible, powerful, and modular platform that delivers the performance, scalability, and high availability required for today's high-density data center, campus aggregation, and core switching environments

Juniper Networks Redundant EX8208 TAA-compliant system configuration: 8-slot chassis with passive backplane and 1x fan tray, 2x routing engine with switch fabric, 1x switch fabric module, 6x 2000W AC The EX8208 modular Ethernet switch, a member of the Juniper Networks EX series Ethernet switches, offers a flexible, powerful, and modular platform that delivers the performance, scalability, and high availability required for today's high-density data center, campus aggregation, and core switching environments.The EX8208 is ideal for aggregating access switches deployed in campus wiring closets and in data center top-of-rack or end-of-row applications. The EX8208 is also designed to support 1-Gigabit Ethernet server access in data center end-of-row chassis deployments. In core applications, the EX8208 provides approximately 960 Mpps of high-density, wire-speed 10-Gigabit Ethernet performance for the largest campus and data center networks.
