Compatibility Information
Designed For	Juniper EX 8208 ¦ Juniper EX 8216
Expansion / Connectivity
Compatible Slots	1 x expansion slot
Interfaces	48 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
General
Cabling Type	Ethernet 10Base-T Ethernet 100Base-TX Ethernet 1000Base-T
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Data Transfer Rate	1 Gbps
Designed For	EX 8208- 8216
Device Type	Expansion module
Form Factor	Plug-in module
Ports Qty	48 ports
Networking
Cabling Type	Ethernet 10Base-T Ethernet 100Base-TX Ethernet 1000Base-T
Connectivity Technology	Wired
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Data Transfer Rate	1 Gbps

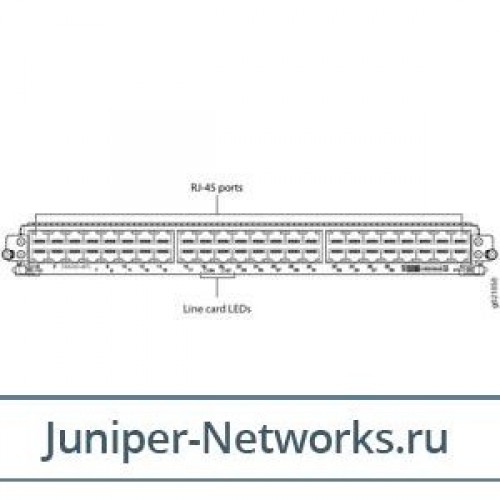

Juniper Networks 48-port 10/100/1000BASE-T RJ-45 20Gbps line card The EX8200-48TL offers 48 oversubscribed (2

Juniper Networks 48-port 10/100/1000BASE-T RJ-45 20Gbps line card The EX8200-48TL offers 48 oversubscribed (2.4:1) 10/100/1000BASE-T RJ-45 ports to provide cost-effective GbE server access in high-density data center end-of-row applications. The EX8200-48TL also supports server access, converged access, and aggregation/core deployments, where it can be used to connect management stations, analyzers, snuffers, firewalls, intrusion detection and prevention/intrusion detection service (IDP/ IDS) devices, server load balancers, and other devices. The EX8200-48TL, which delivers up to 24 Gbps and 36 million packets per second (pps) performance, supports MACSec functionality on all GbE ports in hardware and features eight quality-of-service (QoS) queues per port. Configured exclusively with EX8200-48TL line cards, a single EX8208 chassis can support up to 384 GbE ports while a single EX8216 chassis can support up to 768 GbE ports.
