Compatibility Information
Designed For	Juniper EX 8208 ¦ Juniper EX 8216
Expansion / Connectivity
Compatible Slots	1 x expansion slot
Interfaces	48 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
General
Cabling Type	Ethernet 10Base-T Ethernet 100Base-TX Ethernet 1000Base-T
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Data Transfer Rate	1 Gbps
Designed For	EX 8208- 8216
Device Type	Expansion module
Dimensions (WxDxH)	14.4 in x 20.5 in x 1.6 in
Form Factor	Plug-in module
Ports Qty	48 ports
Networking
Cabling Type	Ethernet 10Base-T Ethernet 100Base-TX Ethernet 1000Base-T
Connectivity Technology	Wired
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Data Transfer Rate	1 Gbps
Features	ARP support VLAN support Weighted Random Early Detection (WRED) Jumbo Frames support
Power
Power Consumption Operational	194 Watt

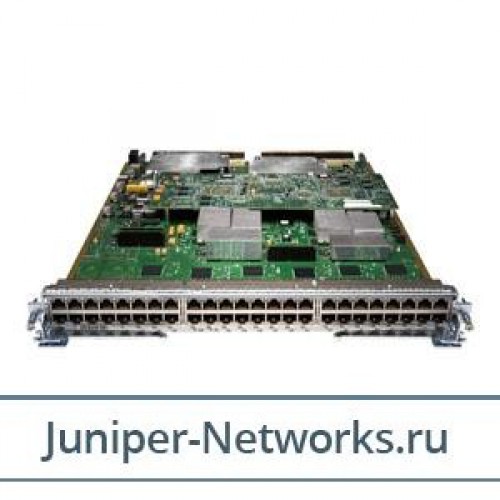

Juniper Networks 48-port 10/100/1000BASE-T RJ-45 TAA-compliant line card The Juniper Networks EX8200 line of Ethernet switches offer powerful, modular platforms that deliver the performance, scalability, and carrier-class reliability required for today's high-density enterprise data center and campus aggregation and core environments, as well as high-performance service provider interconnects

Juniper Networks 48-port 10/100/1000BASE-T RJ-45 TAA-compliant line card The Juniper Networks EX8200 line of Ethernet switches offer powerful, modular platforms that deliver the performance, scalability, and carrier-class reliability required for today's high-density enterprise data center and campus aggregation and core environments, as well as high-performance service provider interconnects.EX8200 Ethernet line cards are specifically designed to optimize enterprise applications. Each EX8200 Ethernet line card features an on-board Packet Forwarding Engine - the EX-PFE2 -that is equipped with two purpose-built, application-specific integrated circuits (ASICs), one to perform wire-speed packet processing at line rates, and another to perform internal deep packet queuing and buffering while providing a high-speed interface to the chassis switch fabric. In addition, each line card contains a local processor which provides scalable local control and status processing.The EX8200-48T Ethernet line card offers 48 10/100/1000BASE-T ports with RJ-45 copper connectors. Designed for data center end-of-row server access, or campus applications where high densities, high performance, and high availability over copper links up to 100m are required, the EX8200-48T enables up to 384 line-rate ports.
