Compatibility Information
Designed For	Juniper EX 8208 ¦ Juniper EX 8216
Expansion / Connectivity
Compatible Slots	1 x expansion slot
Interfaces	48 x network / power - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
General
Cabling Type	Ethernet 10Base-T Ethernet 100Base-TX Ethernet 1000Base-T
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Data Transfer Rate	1 Gbps
Designed For	EX 8208- 8216
Device Type	Expansion module
Form Factor	Plug-in module
Ports Qty	48 ports
Networking
Cabling Type	Ethernet 10Base-T Ethernet 100Base-TX Ethernet 1000Base-T
Connectivity Technology	Wired
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Data Transfer Rate	1 Gbps
Features	PoE+

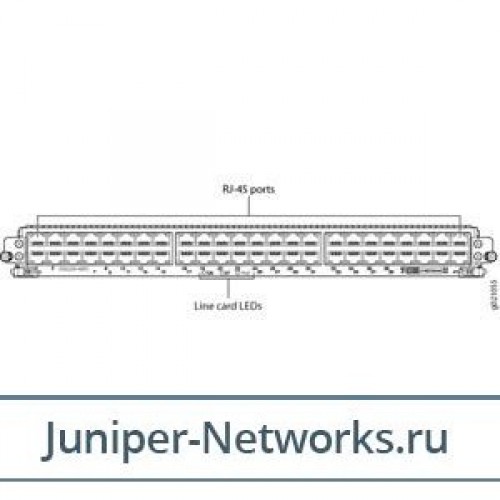

Juniper Networks 48-port PoE+ 10/100/1000BASE-T RJ-45 20Gbps line card The EX8200-48PL supports for the IEEE 802

Juniper Networks 48-port PoE+ 10/100/1000BASE-T RJ-45 20Gbps line card The EX8200-48PL supports for the IEEE 802.3af Power over Ethernet (PoE) standard. It delivers up to 15.4 watts of Class 3 PoE on all 48 ports to power networked devices such as telephones, video cameras, and wireless LAN (WLAN) access points, providing an EX8200-based user access or converged access/core solution. In addition, the first 12 ports are capable of supporting the IEEE 802.3at PoE+ standard.
