Environmental Parameters
Humidity Range Operating	5 - 90% (non-condensing)
Humidity Range Storage	5 - 95% (non-condensing)
Max Operating Temperature	113 °F
Max Storage Temperature	158 °F
Min Operating Temperature	32 °F
Min Storage Temperature	-40 °F
Expansion / Connectivity
Expansion Slot(s)	10 (total) / 7 (free) x expansion slot
Installed Modules Qty (Max)	3 (installed) / 10 (max)
Interfaces	1 x SFP (mini-GBIC) - management ¦ 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - management ¦ 1 x console - RJ-45 - management ¦ USB : 1 x 4 pin USB Type A ¦ 4 x SFP+ ¦ 96 x 10Base-T/100Base-TX/1000Base-T - RJ-45
General
Capacity	Virtual interfaces (VLANs) : 4096 ¦ VLAN Spanning Tree Protocol instances : 253 ¦ Multiple Spanning Tree Protocol instances : 64 ¦ ARP entries : 16000 ¦ IPv4 routes : 16000 ¦ QoS hardware queues : 8
Compliant Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.1D IEEE 802.1Q IEEE 802.3ab IEEE 802.1p IEEE 802.3x IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.1x IEEE 802.3ae IEEE 802.1s IEEE 802.3ah IEEE 802.1ab (LLDP) IEEE 802.1ak
Device Type	Switch - 96 ports - managed
Dimensions (WxDxH)	17.3 in x 15.5 in x 24.3 in
Enclosure Type	Desktop - 14U
Features	Flow control firewall protection BOOTP support RARP support ARP support IGMP snooping DoS attack prevention DiffServ support store and forward High Availability SNTP support Spanning Tree Protocol (STP) support Rapid Spanning Tree Protocol (RSTP) support Virtual Route Redundancy Protocol (VRRP) support DHCP snooping Trivial File Transfer Protocol (TFTP) support Access Control List (ACL) support Quality of Service (QoS) DHCP server Dynamic ARP Inspection (DAI) Redundant trunk group (RTG) Non-Stop Routing (NSR) Graceful Route Engine Switchover (GRES) front to back airflow Per-VLAN Spanning Tree Plus (PVST+) reset button Bidirectional Forwarding Detection (BFD) LLDP support DHCP relay Link Aggregation Control Protocol (LACP) fan tray Dynamic VLAN Support (GVRP) VLAN Spanning Tree Protocol (VSTP)
Jumbo Frame Support	9216
MAC Address Table Size	32K entries
Performance	Throughput : 64 Gbps ¦ Backplane speed : 4.4 Tbps
Ports	96 x 10/100/1000
Power	AC 120/230 V ( 50/60 Hz )
Power Over Ethernet (PoE)	PoE+
Power Redundancy	Optional
Remote Management Protocol	SNMP 1 RMON 1 RMON 2 RMON 3 RMON 9 Telnet SNMP 3 SNMP 2c HTTP TFTP
Routing Protocol	OSPF RIP-1 RIP-2 IGMPv2 IGMP VRRP OSPFv2 PIM-SM static IP routing PIM-DM IGMPv3 PIM-SSM MSDP Bidirectional Forwarding Detection (BFD) CIDR
System Requirements	JUNOS
Miscellaneous
Compliant Standards	ETSI CISPR 22 Class A EN 61000-3-2 VCCI Class A ITE EN 61000-3-3 EN55024 EN55022 Class A EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 EN 61000-4-5 EN 61000-4-11 IEC 60950-1 EN 60950-1 UL 60950-1 Second Edition RoHS BSMI CNS 13438 FCC Part 15 A NEBS CSA C22.2 No. 60950-1 EN 60825-1
Power
Installed Qty	1 (installed) / 4 (max)
Power Consumption Operational	2500 Watt
Power Device	Power supply - hot-plug - plug-in module
Power Redundancy	Optional
Power Redundancy Scheme	N+1 (with optional power supply) N+N (with optional power supply)
Voltage Required	AC 120/230 V ( 50/60 Hz )
Software / System Requirements
OS Required	JUNOS

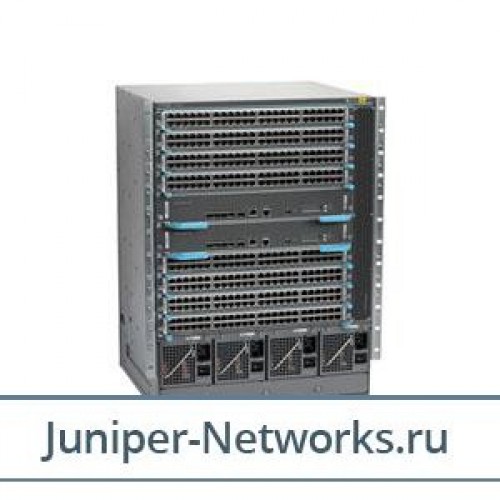

Juniper Networks EX6210 96-port PoE+ system: 10-slot chassis with passive backplane, 1x fantray, 1x switch routing engine with switch fabric and 4x10G SFP+ uplinks, 2x 48-port PoE+ linecards, 1x 2500W AC PSU with power cord, and blanks (optics not include Juniper Networks EX6210 Ethernet Switches provide high performance, scalable connectivity, and carrier-class reliability for high-density environments such as campus-access and data-center networks

Juniper Networks EX6210 96-port PoE+ system: 10-slot chassis with passive backplane, 1x fantray, 1x switch routing engine with switch fabric and 4x10G SFP+ uplinks, 2x 48-port PoE+ linecards, 1x 2500W AC PSU with power cord, and blanks (optics not include Juniper Networks EX6210 Ethernet Switches provide high performance, scalable connectivity, and carrier-class reliability for high-density environments such as campus-access and data-center networks. The EX6210 switch is a modular system that provides high availability and redundancy for all major hardware components, including Routing Engines, switch fabric, fan tray (redundant fans), and power supplies.
