Environmental Parameters
Humidity Range Operating	5 - 90% (non-condensing)
Humidity Range Storage	5 - 95% (non-condensing)
Max Operating Temperature	113 °F
Max Storage Temperature	158 °F
Min Operating Temperature	32 °F
Min Storage Temperature	-40 °F
Expansion / Connectivity
Expansion Slot(s)	10 (total) / 10 (free) x expansion slot
Installed Modules Qty (Max)	0 (installed) / 10 (max)
General
Device Type	Switch
Dimensions (WxDxH)	17.3 in x 15.5 in x 24.3 in
Enclosure Type	Rack-mountable - 14U
Features	Modular design
Power Redundancy	Optional
Miscellaneous
Compliant Standards	ETSI CISPR 22 Class A EN 61000-3-2 VCCI Class A ITE EN 61000-3-3 EN55024 EN55022 Class A EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 EN 61000-4-5 EN 61000-4-11 IEC 60950-1 EN 60950-1 UL 60950-1 Second Edition RoHS BSMI CNS 13438 FCC Part 15 A NEBS CSA C22.2 No. 60950-1 EN 60825-1
Power
Installed Qty	0 (installed) / 4 (max)
Power Device	Power supply - hot-plug - plug-in module
Power Redundancy	Optional
Power Redundancy Scheme	N+1 (with optional power supply) N+N (with optional power supply)

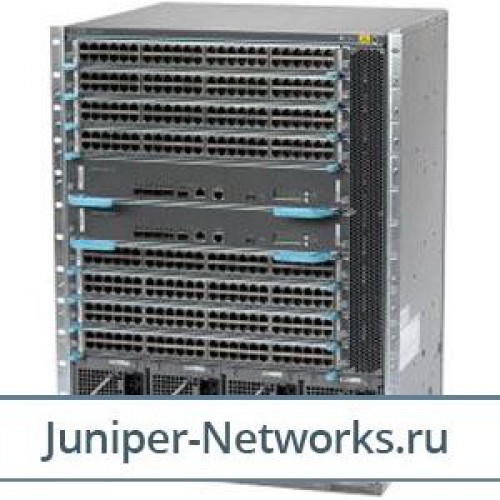

Juniper Networks EX6210 chassis with backplane, spare Juniper Networks EX6210 Ethernet Switches provide high performance, scalable connectivity, and carrier-class reliability for high-density environments such as campus-access and data-center networks

Juniper Networks EX6210 chassis with backplane, spare Juniper Networks EX6210 Ethernet Switches provide high performance, scalable connectivity, and carrier-class reliability for high-density environments such as campus-access and data-center networks. The EX6210 switch is a modular system that provides high availability and redundancy for all major hardware components, including Routing Engines, switch fabric, fan tray (redundant fans), and power supplies.
