10/100/1000BASE-T Port Densities
1296 per 42 U rack	Да
432 per chassis (384 ports using dedicated I/O slots + 48 ports	Да
100BASE-FX / 1000BASE-X (SFP) Port Densities
8 1GbE/10GbE SFP/SFP+ uplink ports on SRE modules	Да
10GBASE-X Port Densities
8 1GbE/10GbE SFP/SFP+ uplink ports on SRE modules	Да
ARP Entries
16000	Да
Backplane Speed
4.4 Tbps backplane capacity	Да
Data Rate
128 Gbps (full duplex) per linecard with two SREs installed	Да
64 Gbps (full duplex) per linecard with one SRE installed	Да
Dimensions
(W x H x D) 17.3 x 24.3 x 15.5 in (43.9 x 61.7 x 39.4 cm)	Да
14 rack unit	Да
Form Factor
10-slot modular chassis	Да
IPv4 Unicast / Multicast Routes
16000 / 8000	Да
Jumbo Frames
9216 Bytes	Да
MAC Addresses
32000	Да
Number of VLANs
4096	Да
Operating System
Junos	Да
Power Options
100-120V / 200-240V (up to 10000W or 20000W per system) (roadmap	Да
AC	2500W and 5000W (roadmap) autosensing
DC	2100W
QoS Queues / Port
8	Да
Resiliency
4 power supply slots for N+1 or N+N (2+2) redundancy	Да
GRES	Да
Redundant Routing Engines and Switch Fabrics	Да
Throughput
690 Mpps system throughput	Да
Traffic Monitoring
sFlow (roadmap)	Да
Warranty
Enhanced limited lifetime hardware warranty	Да

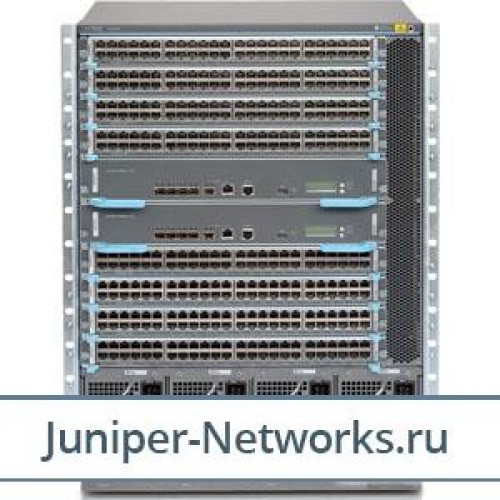

The EX6200 line of Ethernet switches delivers a scalable, resilient and high-performance wiring closet solution for enterprise campus deployments

The EX6200 line of Ethernet switches delivers a scalable, resilient and high-performance wiring closet solution for enterprise campus deployments. The EX6200 is also an ideal fit for data center access deployments using end-of-row designs.The EX6210 is a 10-slot chassis designed to support a variety of highly flexible network configurations. Two of the slots hold Switch Fabric Routing Engine (SRE) modules, while the remaining eight slots are dedicated for I/O line cards. Optional configurations allow an additional line card to be housed in an SRE slot*, enabling users to choose between higher port densities or redundant SREs.Two EX6200 48-port 10/1000/1000BASE-T line cards are available, with and without support for the IEEE 802.3af Power over Ethernet (PoE) standard. PoE provides 15.4 watts per port for powering networked devices such as telephones, video cameras, multiple radio IEEE 802.11n wireless LAN (WLAN) access points and video phones in converged network environments. The PoE line card also supports the IEEE 802.3at PoE+ standard, which delivers up to 30 watts of power per port for devices that require more than the 15.4 watts provided by PoE.At just 14 rack-units (U) high, a single EX6200 chassis can support up to 432 PoE+ ports, delivering the industry's densest PoE+ solution in its form factor class.At just 15.5 inches deep, the EX6210 is also compact enough for traditional wiring closets, making it ideal for campus deployments.The EX6200 switches run the same modular Junos OS control plane feature implementation as other Juniper switches, routers and security devices, providing a consistent set of features and capabilities across the Juniper network infrastructure. In addition the EX6200 comes with a rich set of Layer2 and Layer3 features that are supported in the base image without the need of an additional license. These features include IPv6 support*, very extensive Quality of Service (QoS) and a slew of security features in addition to great scalability for MAC and IP addresses.The EX6200 is also backed by Juniper's enhanced Limited Lifetime warranty program.* Roadmap
