Environmental Parameters
Humidity Range Operating	10 - 85%
Max Operating Temperature	113 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Expansion Slot(s)	1 (total) / 1 (free) x expansion slot
Interfaces	1 x - management ¦ 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE
General
Compliant Standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1p IEEE 802.3af IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.1x IEEE 802.1s IEEE 802.1ab (LLDP)
Device Type	Switch - 48 ports - L3 - managed
Dimensions (WxDxH)	17.4 in x 16.4 in x 1.7 in
Enclosure Type	Desktop - 1U
Features	Hot swap module replacement routing layer 3 switching layer 2 switching DHCP support power over Ethernet (PoE) ARP support MPLS support VLAN support auto-uplink (auto MDI/MDI-X) IGMP snooping Syslog support DoS attack prevention store and forward IPv6 support 256-bit encryption DHCP snooping Quality of Service (QoS) RADIUS support Jumbo Frames support DHCP server DHCP proxy Dynamic ARP Inspection (DAI) temperature sensor Redundant trunk group (RTG) Time Domain Reflectometry (TDR)
MAC Address Table Size	24K entries
Ports	48 x 10/100/1000
Power	AC 120/230 V
Power Over Ethernet (PoE)	PoE
Remote Management Protocol	SNMP 1 SNMP 2 RMON 1 RMON 2 RMON 3 RMON 9 RMON SNMP 3 HTTP HTTPS SSH-2
Routing Protocol	OSPF IS-IS RIP-1 RIP-2 BGP IGMPv2 IGMP VRRP PIM-SM static IP routing IGMPv3 policy-based routing (PBR)
Miscellaneous
Compliant Standards	TUV GS CISPR 22 Class A cUL VCCI Class A ITE EN55024 EN55022 Class A CSA 22.2 No. 60950 ICES-003 Class A FCC CFR47 Part 15 EN300-386 UL 60950-1 IEC 60950-1 EN 60950-1 RoHS
Power
Installed Qty	1 (installed) / 2 (max)
Power Consumption Operational	320 Watt
Power Device	Power supply - hot-plug / redundant
Voltage Required	AC 120/230 V
Software / System Requirements
Software Included	Juniper NetScreen-Security Manager

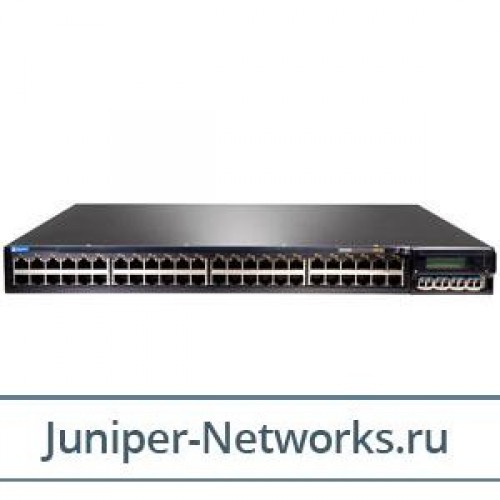

Juniper Networks EX 3200, 48-port 10/100/1000BaseT PoE + 930W AC PS This new Juniper EX3200-48P is a scalable and secure switch that delivers efficient, cost-effective and secure operations to your computer network

Juniper Networks EX 3200, 48-port 10/100/1000BaseT PoE + 930W AC PS This new Juniper EX3200-48P is a scalable and secure switch that delivers efficient, cost-effective and secure operations to your computer network. The model has 48 10/100/1000 ports that lay a fast and highly productive foundation and ensures the reliable delivery of your daily applications. In addition, Juniper EX Switches optimize operational efficiency, agility and business continuity, so you can invest in new technologies that improve your revenue streams and grow your profit margin. To ensure that you have the modern computer network that meets your increasing demands for unified communications and high availability, the Juniper EX3200-48P works with the brand’s Simply Connected portfolio. For security and wireless solutions, the portfolio gives you a standards-based foundation that is flexible enough for all your enterprise applications. This network switch also handle messaging, Web services, Internet protocol telephony and messaging services. The Juniper EX3200-48P is especially well suited to the challenges of server virtualization and distributed applications. Since the brand has a data center architecture that improves performance and ensures future growth with its scalable design, you can easily interconnect multiple devices with a single Juniper EX3200 Series switch. The devices are easily operated and managed as a single, logical unit that saves you further money by reducing the needs for specialized Internet protocols. Since it can operate on the same Junos operating system as your existing network, you can save time on the implementation of emerging technology. When you are looking for the most cost-effective way to embrace new apps, devices and features, Juniper EX series switches are an ideal choice.
