Environmental Parameters
Humidity Range Operating	10 - 85%
Max Operating Temperature	113 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Expansion Slot(s)	1 (total) / 1 (free) x expansion slot
Interfaces	1 x - management ¦ 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE
General
Compliant Standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1p IEEE 802.3af IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.1x IEEE 802.1s IEEE 802.1ab (LLDP)
Device Type	Switch - 24 ports - L3 - managed
Dimensions (WxDxH)	17.4 in x 16.4 in x 1.7 in
Enclosure Type	Desktop - 1U
Features	Hot swap module replacement routing layer 3 switching layer 2 switching DHCP support power over Ethernet (PoE) ARP support MPLS support VLAN support auto-uplink (auto MDI/MDI-X) IGMP snooping Syslog support DoS attack prevention store and forward IPv6 support 256-bit encryption DHCP snooping Quality of Service (QoS) RADIUS support Jumbo Frames support DHCP server DHCP proxy Dynamic ARP Inspection (DAI) temperature sensor Redundant trunk group (RTG) Time Domain Reflectometry (TDR)
MAC Address Table Size	24K entries
Ports	24 x 10/100/1000
Power	AC 120/230 V
Power Over Ethernet (PoE)	PoE
Remote Management Protocol	SNMP 1 SNMP 2 RMON 1 RMON 2 RMON 3 RMON 9 RMON SNMP 3 HTTP HTTPS SSH-2
Routing Protocol	OSPF IS-IS RIP-1 RIP-2 BGP IGMPv2 IGMP VRRP PIM-SM static IP routing IGMPv3 policy-based routing (PBR)
Miscellaneous
Compliant Standards	TUV GS CISPR 22 Class A cUL VCCI Class A ITE EN55024 EN55022 Class A CSA 22.2 No. 60950 ICES-003 Class A FCC CFR47 Part 15 EN300-386 UL 60950-1 IEC 60950-1 EN 60950-1 RoHS
Power
Installed Qty	1 (installed) / 2 (max)
Power Consumption Operational	600 Watt
Power Device	Power supply - hot-plug / redundant
Voltage Required	AC 120/230 V
Software / System Requirements
Software Included	Juniper NetScreen-Security Manager

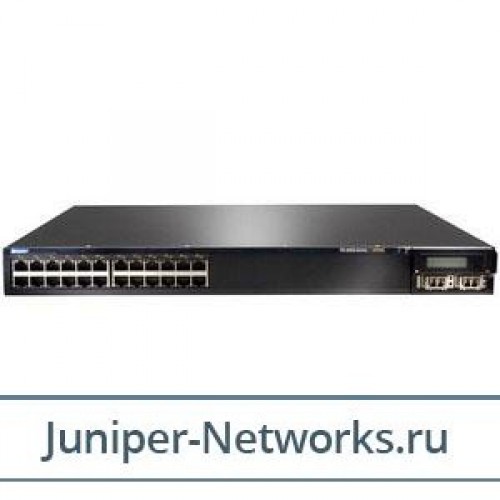

Juniper Networks EX 3200 TAA, 24-port 10/100/1000BaseT PoE + 600W AC PS The EX3200 from Juniper Networks offers a high performance standalone solution for access-layer deployments in branch and remote offices as well as campus networks

Juniper Networks EX 3200 TAA, 24-port 10/100/1000BaseT PoE + 600W AC PS The EX3200 from Juniper Networks offers a high performance standalone solution for access-layer deployments in branch and remote offices as well as campus networks. Featuring complete Layer 2 and Layer 3 switching capabilities, the EX3200 satisfies the wiring closet connectivity requirements of today's high-performance businesses.The base 24-port EX3200 switch with full PoE supports high-density IP telephony and other converged network devices such as telephones, video cameras and wireless LAN (WLAN) access points. A field-replaceable power supply and fan tray minimize mean time to repair (MTTR) for the EX3200, ensuring maximum availability.The EX3200 offers an integrated routing engine (RE) to ensure the consistent implementation and operation of each control plane feature across an entire Juniper Networks infrastructure. The EX3200 switch includes an integrated application-specific integrated circuit (ASIC)-based packet forwarding engine to consistently deliver wire-rate forwarding even with all control-plane features enabled.The EX3200 occupies a single rack unit and deliver a compact solution for crowded wiring closets and access locations where space and power are at a premium. The EX3200 also features a front-panel LCD that offers a flexible interface for performing device bring-up and configuration rollbacks, for reporting switch alarm and LED status, or for restoring the switch to its default settings.
