Environmental Parameters
Humidity Range Operating	10 - 85%
Max Operating Temperature	113 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Expansion Slot(s)	1 (total) / 1 (free) x expansion slot
Interfaces	1 x - management ¦ 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE
General
Compliant Standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1p IEEE 802.3af IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.1x IEEE 802.1s IEEE 802.1ab (LLDP)
Device Type	Switch - 24 ports - L3 - managed
Dimensions (WxDxH)	17.4 in x 16.4 in x 1.7 in
Enclosure Type	Desktop - 1U
Features	Hot swap module replacement routing layer 3 switching layer 2 switching DHCP support power over Ethernet (PoE) ARP support MPLS support VLAN support auto-uplink (auto MDI/MDI-X) IGMP snooping Syslog support DoS attack prevention store and forward IPv6 support 256-bit encryption DHCP snooping Quality of Service (QoS) RADIUS support Jumbo Frames support DHCP server DHCP proxy Dynamic ARP Inspection (DAI) temperature sensor Redundant trunk group (RTG) Time Domain Reflectometry (TDR)
MAC Address Table Size	24K entries
Ports	24 x 10/100/1000
Power	AC 120/230 V
Power Over Ethernet (PoE)	PoE
Remote Management Protocol	SNMP 1 SNMP 2 RMON 1 RMON 2 RMON 3 RMON 9 RMON SNMP 3 HTTP HTTPS SSH-2
Routing Protocol	OSPF IS-IS RIP-1 RIP-2 BGP IGMPv2 IGMP VRRP PIM-SM static IP routing IGMPv3 policy-based routing (PBR)
Miscellaneous
Compliant Standards	TUV GS CISPR 22 Class A cUL VCCI Class A ITE EN55024 EN55022 Class A CSA 22.2 No. 60950 ICES-003 Class A FCC CFR47 Part 15 EN300-386 UL 60950-1 IEC 60950-1 EN 60950-1 RoHS
Power
Installed Qty	1 (installed) / 2 (max)
Power Consumption Operational	600 Watt
Power Device	Power supply - hot-plug / redundant
Voltage Required	AC 120/230 V
Software / System Requirements
Software Included	Juniper NetScreen-Security Manager

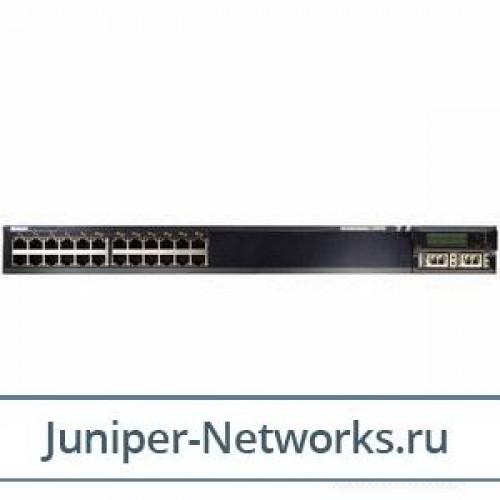

Juniper Networks EX 3200, 24-port 10/100/1000BaseT PoE + 600W AC PS The Juniper EX3200-24P is engineered as a Layer 3 switch that is ideal for your local area network (LAN)

Juniper Networks EX 3200, 24-port 10/100/1000BaseT PoE + 600W AC PS The Juniper EX3200-24P is engineered as a Layer 3 switch that is ideal for your local area network (LAN). With 24 10/100/1000 ports, you receive the connections that your aggregation, micro branch or branch office requires for secure, fast and reliable delivery of applications in a modern setting. This new Juniper EX3200 switch is engineered to meet your increasing demands for high availability while providing unified communications in a high-performance network. With improved operational efficiency, agility and business continuity, the Juniper EX3200-24P allows you to maximize your investment dollars while increasing your revenue streams for a competitive advantage in today’s global marketplace. Since the Juniper EX Series of switches work seamlessly with the brand’s Simply Connected portfolio, your network receives the wireless and security solutions that lay the foundation for a standards-based network. The switches ensure that your network is well aligned and flexible so that you can deliver enterprise applications such as messaging, video conferencing, Web services and Internet Protocol telephony. In addition to business agility, scalable architecture and optimal security, the Juniper EX3200-24P series switches are well suited to your server virtualization and are an ideal enhancement to your distributed applications. The models are powered by a data center architecture that ensures your network receives improved performance and the highest levels of operational efficiency. For the lowest total cost of ownership and decreased operating expenses, the Juniper EX3200-24P is powered by the Junos operating system to deliver your network the most consistent and predictable behavior. The single operating system also makes it easy for your administrators to implement a series of rich features across an entire network infrastructure. When you need a cost-effective, efficient and scalable solution to your office's network problems, the Juniper EX Series is an affordable option.
