Environmental Parameters
Humidity Range Operating	8 - 90% (non-condensing)
Max Operating Temperature	104 °F
Min Operating Temperature	41 °F
Expansion / Connectivity
Expansion Slot(s)	Expansion slot
Interfaces	Management : 1 x console - RJ-45 ¦ 1 x auxiliary - RJ-45 ¦ Management : 1 x RJ-45 ¦ 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45
General
Compliant Standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1p IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.1s IEEE 802.1ab (LLDP)
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Device Type	Router
Dimensions (WxDxH)	17.2 in x 17.7 in x 3.5 in
Enclosure Type	Rack-mountable - modular - 2U
Features	Layer 3 switching layer 2 switching ARP support IGMP snooping IPv6 support Spanning Tree Protocol (STP) support Rapid Spanning Tree Protocol (RSTP) support Virtual Route Redundancy Protocol (VRRP) support Multiple Spanning Tree Protocol (MSTP) support Quality of Service (QoS) RADIUS support SSH support Redundant trunk group (RTG) Bidirectional Forwarding Detection (BFD) hot swappable dual fans
Jumbo Frame Support	9216
Network / Transport Protocol	TCP/IP UDP/IP ARP
Power	DC -38 -72 V
Remote Management Protocol	Telnet SSH SSH-2 CLI
Routing Protocol	OSPF IS-IS RIP-1 RIP-2 BGP IGMPv2 IGMP VRRP OSPFv2 PIM-SM PIM-DM IGMPv3 PIM-SSM MSDP
Miscellaneous
Compliant Standards	CISPR 22 Class A VCCI Class A ITE EN55024 EN55022 Class A ICES-003 Class A RoHS FCC CFR47 Part 15 EN300-386 UL 60950-1 IEC 60950-1 EN 60950-1 CSA C22.2 No. 60950-1 EN 60825-1
Power
Installed Qty	2 (installed) / 2 (max)
Power Device	Power supply - hot-plug / redundant - plug-in module - 560 Watt
Voltage Required	DC -38 -72 V
Software / System Requirements
OS Provided	JUNOS

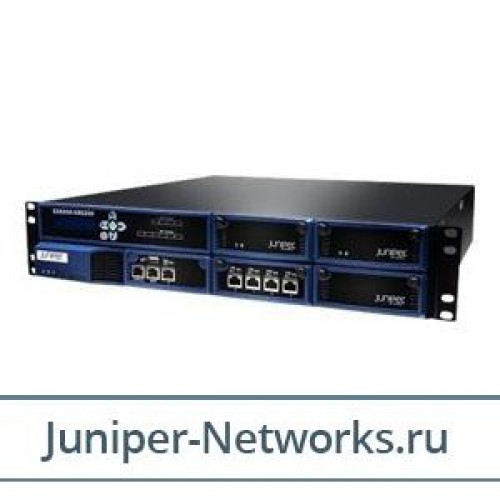

Juniper Networks EX 8200 Virtual Chassis External Routing Engine 200 includes dual DC power supplies, dual fans, 2 160GB HDD and one 4 port 10/100/1000 BASE-T RJ-45 IO card The XRE200 features redundant hard disk drives, redundant hot-swappable load-sharing power supplies, and redundant hot-swappable fans to ensure maximum availability

Juniper Networks EX 8200 Virtual Chassis External Routing Engine 200 includes dual DC power supplies, dual fans, 2 160GB HDD and one 4 port 10/100/1000 BASE-T RJ-45 IO card The XRE200 features redundant hard disk drives, redundant hot-swappable load-sharing power supplies, and redundant hot-swappable fans to ensure maximum availability.The XRE200 includes a front-panel LCD that can be used for device bring-up and configuration rollbacks, switch alarm reporting and LED status, and restoring switch default settings. A front-panel RJ-45 console port and the 10/100/1000BASE-T Ethernet port enable out-of-band management.
