Environmental Parameters
Humidity Range Operating	10 - 95% (non-condensing)
Max Operating Temperature	131 °F
Min Operating Temperature	-40 °F
Expansion / Connectivity
Interfaces	1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - 8 pin DIN
General
Data Link Protocol	IEEE 802.11b IEEE 802.11a IEEE 802.11g IEEE 802.11n
Device Type	Wireless access point
Dimensions (WxDxH)	11.2 in x 5.6 in x 11.2 in
Enclosure Type	External - outdoor
Features	Wireless Intrusion Detection System (WIDS) SpectraLink Voice Priority (SVP) support Quality of Service (QoS) Maximum Ratio Combining (MRC) 3T3R MIMO technology CAPWAP support Cyclic Delay Diversity (CDD) Space Time Blocking Code (STBC)
Frequency Band	2.4 GHz 5 GHz
Localization	Worldwide
Power	DC 48 V
Miscellaneous
Compliant Standards	CB IC MIC FCC R&TTE RoHS IEC 60950-1 WEEE EN 301.893 EN 60601-1-2 IP67 CAN/CSA C22.2 No. 60950-1
Networking
Compliant Standards	IEEE 802.3u IEEE 802.3i IEEE 802.3ab IEEE 802.11b IEEE 802.11a IEEE 802.11g IEEE 802.1x IEEE 802.11i IEEE 802.11e IEEE 802.11n
Connectivity Technology	Wireless
Data Link Protocol	IEEE 802.11b IEEE 802.11a IEEE 802.11g IEEE 802.11n
Data Transfer Rate	300 Mbps
Encryption Algorithm	AES TKIP AES-CCMP
Features	Wireless Intrusion Detection System (WIDS) SpectraLink Voice Priority (SVP) support Quality of Service (QoS) Maximum Ratio Combining (MRC) 3T3R MIMO technology CAPWAP support Cyclic Delay Diversity (CDD) Space Time Blocking Code (STBC)
Form Factor	External
Frequency Band	2.4 GHz 5 GHz
Spread Spectrum Method	OFDM DSSS
Power
Power Consumption Operational	30 Watt
Power Device	Power adapter - external
Voltage Required	DC 48 V
Processor / Memory / Storage
Hard Drive	None.

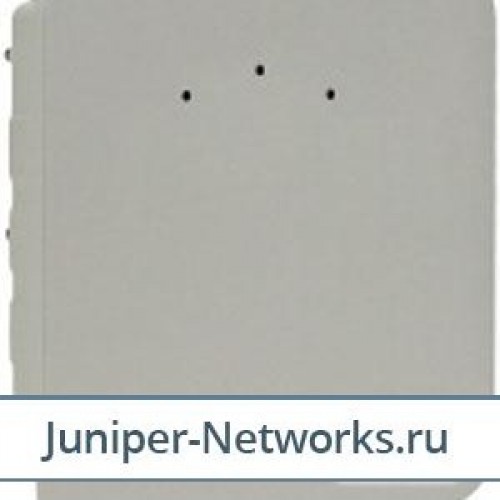

Juniper Outdoor AP, dual radios 802

Juniper Outdoor AP, dual radios 802.11a/b/g/n 3x3 MIMO (2SS), single 1000Base-T PoE Ethernet port, external female Type N connectors. Outdoor power supply included. World-wide operation except US and Israel. The WLA632 Wireless LAN Access Point is a ruggedized dual-radio 3 x 3 MIMO access point designed for outdoor deployment in all weather conditions. As well as enabling wireless users to stay seamlessly connected as they roam from building to building, it also provides mesh services to extend wireless access in areas where Ethernet cabling cannot reach or is not desired. Point-to-point and point-to-multipoint bridging are also supported, allowing the WLA632 to interconnect different sites over the air, without needing to lay or lease fiber.It is simple to deploy, easy to manage, and supports any kind of mobility service, including data, voice, video, and location, over wireless connections. It delivers an enterprise-class feature set in a ruggedized, weatherproof enclosure suitable for extreme outdoor environments.The WLA632 has a dedicated 48 VDC power port, complies with NEMA4X and IP67 standards for corrosion resistance, and features built-in lightning and surge protection along with automatic thermal management. Wi-Fi Multimedia (WMM) or SpectraLink Voice Priority (SVP) can be configured to ensure optimal QoS for voice traffic. Built-in policies allow per user, protocol, or class-of-service (CoS) mapping.The WLA632 plays a key role in rogue and intrusion detection as well as denial-of-service (Dos) attack detection. Its ActiveScan feature allows it to scan all active 802.11 bands, channels, and VLANs while simultaneously providing wireless connectivity to mobile clients. Its SentryScan feature allows the WLA632 to act as a dedicated sentry and provide non-stop scanning.
