Antenna
Antenna	Internal integrated
Antenna Qty	3
Directivity	Omni-directional
Environmental Parameters
Humidity Range Operating	5 - 95% (non-condensing)
Max Operating Temperature	122 °F
Min Operating Temperature	32 °F
Expansion / Connectivity
Interfaces	1 x network / power - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
General
Data Link Protocol	IEEE 802.11b IEEE 802.11a IEEE 802.11g IEEE 802.11n
Device Type	Wireless access point
Dimensions (WxDxH)	5.4 in x 2.1 in x 5.7 in
Enclosure Type	External - indoor
Features	Power over Ethernet (PoE) wall mountable Wireless Intrusion Detection System (WIDS) Wi-Fi Multimedia (WMM) support SpectraLink Voice Priority (SVP) support Quality of Service (QoS) Maximum Ratio Combining (MRC) 3T3R MIMO technology Direct Sequence Spread Spectrum (DSSS) Cyclic Delay Diversity (CDD) Space Time Blocking Code (STBC)
Frequency Band	2.4 GHz 5 GHz
Localization	United States
Power Over Ethernet (PoE) Supported	PoE
Miscellaneous
Compliant Standards	ICES-003 Class B FCC Part 15 B IC MIC R&TTE RoHS IEC 60950-1 WEEE EN 301.893 EN 60601-1-2 CSA C22.2 No. 60950-1
Networking
Compliant Standards	IEEE 802.3u IEEE 802.3i IEEE 802.3ab IEEE 802.11b IEEE 802.11a IEEE 802.3af IEEE 802.11g IEEE 802.1x IEEE 802.11i IEEE 802.11e IEEE 802.11n IEEE 802.3at IEEE 802.3az
Connectivity Technology	Wireless
Data Link Protocol	IEEE 802.11b IEEE 802.11a IEEE 802.11g IEEE 802.11n
Data Transfer Rate	450 Mbps
Encryption Algorithm	TKIP WPA WPA2 AES-CCMP
Features	Power over Ethernet (PoE) wall mountable Wireless Intrusion Detection System (WIDS) Wi-Fi Multimedia (WMM) support SpectraLink Voice Priority (SVP) support Quality of Service (QoS) Maximum Ratio Combining (MRC) 3T3R MIMO technology Direct Sequence Spread Spectrum (DSSS) Cyclic Delay Diversity (CDD) Space Time Blocking Code (STBC)
Form Factor	External
Frequency Band	2.4 GHz 5 GHz
Spread Spectrum Method	OFDM DSSS
Power
Power Consumption Operational	10 Watt
Power Over Ethernet (PoE) Supported	PoE
Processor / Memory / Storage
Hard Drive	None.

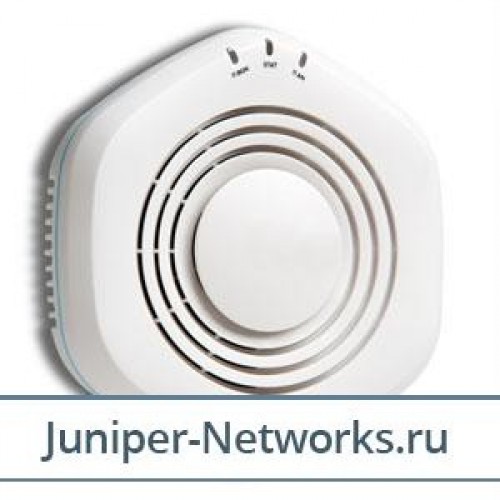

Juniper Networks AP with dual radios 802

Juniper Networks AP with dual radios 802.11a/b/g/n 3x3 MIMO (3SS), single 1000Base-T 802.3af PoE Ethernet port, 6 internal antennas. Not rated for plenum use.Ceiling mount bracket included. For operation only in USA. Juniper's WLA532-US WLA Access Point saves money because it takes fewer units to cover an area. With an advanced multiple antenna design, performance enhancements for optimized use and easy, flexible installation, it also has improved performance over earlier 802.11n and packs some serious security features. The security features of this Juniper access point include 802.11i, WPA2/AES, WPA/TKIP, and WEP encryption, keeping up with the air rate. There's no serial port access or stored configuration on board, and removing the unit from the bracket requires a special tool. The data path to the controller from the access point is also encrypted. The signal quality of the WLA532-US comes from dual radios (2.4GHz/5GHz) and 3x3 MIMO antennas, cross-polarized and down-tilted 5 degrees to provide the best signal strength. AutoTune Dynamic RF management and versatile mounting means it can be installed and managed for best results. Speed is what really makes this Juniper WLA Access Point an outstanding performer, with up to 450Mbps link speed for each radio, more than 10 times better than legacy 802.11a/b/g, and adding 50 percent bandwidth even to previous generation 11n units. The unit has advanced VLAN tunneling and local switching for low latency and high performance results. It has a gigabit Ethernet port with 802.3af Power over Ethernet (PoE), so data bottlenecks will be hard to find. The WLA532-US is available new and works with WLC series wireless LAN controllers and WLM series wireless LAN management. Energy efficient and designed to come through in difficult deployments, this model is not plenum rated but designed for surface installation with an attractive appearance.
